RG125-19/56
Activeebm-papst Inc.

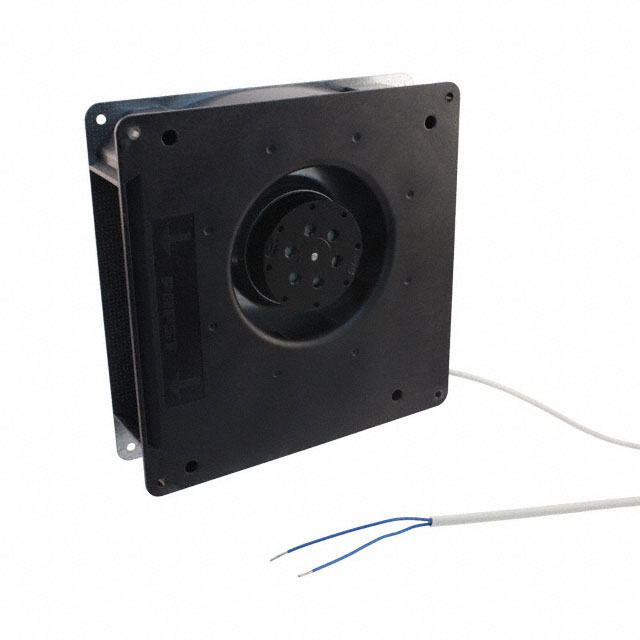

FAN BLWR FLATPAK 180X40MM 230VAC
Deep-Dive with AI
Search across all available documentation for this part.
RG125-19/56
Activeebm-papst Inc.
FAN BLWR FLATPAK 180X40MM 230VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RG125-19/56 |
|---|---|
| Air Flow | 50.6 CFM |
| Air Flow | 1.42 mł/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Fan Type | Blower, Flatpak |
| Lifetime @ Temp. | 37500 Hrs, 40 °C |
| Material - Blade | Plastic, Fiberglass Reinforced |
| Material - Frame | Glass Filled, Plastic |
| Noise | 60 dB(A) |
| Operating Temperature [Max] [custom] | 70 °C |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -30 °C |
| Operating Temperature [Min] [custom] | -22 °F |
| Power (Watts) | 20 W |
| RPM | 2550 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 180 mm |
| Size / Dimension [y] | 180 mm |
| Termination | 2 Wire Leads |
| Voltage - Rated | 230 VAC |
| Weight | 907.2 g |
| Weight | 2 lbs |
| Width [y] | 40 mm |
RG125 Series
| Part | Termination | Voltage - Rated | Weight | Weight | Ingress Protection | Material - Frame | Bearing Type | Fan Type | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Width [y] | Features | Power (Watts) | Air Flow | Air Flow | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | RPM | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension | Material - Blade | Noise | Approval Agency | Operating Temperature [Min] [custom] | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Operating Temperature [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ebm-papst Inc. | 3 Wire Leads | 12 VDC | 725.7 g | 1.6 lbs | IP54 - Dust Protected Water Resistant | Steel | Ball | Blower Centrifugal | 7 V | 15 V | 105000 Hrs | 40 mm | Speed Sensor (Tach) | 5.2 W | 51.5 CFM | 1.44 m³/min | -30 ░C | 75 ░C | 75 °C | -30 °C | 2550 RPM | 180 mm | 180 mm | Square | |||||||
ebm-papst Inc. | 2 Wire Leads | 12 VDC | 725.7 g | 1.6 lbs | Glass Filled Plastic | Ball | Blower Centrifugal | 7 V | 15 V | 70000 Hrs | 40 mm | 2 W | 35.3 CFM | 0.988 mł/min | -30 ░C | 75 ░C | 75 °C | -30 °C | 1750 RPM | 180 mm | 180 mm | Square | Plastic Fiberglass Reinforced | 48 dB | |||||||
ebm-papst Inc. | 2 Wire Leads | 115 VAC | 907.2 g | 2 lbs | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Ball | Blower Flatpak | 40000 Hrs | 40 mm | 19 W | 55.3 CFM | 1.55 m³/min | 2750 RPM | 180 mm | 180 mm | Square | Plastic Fiberglass Reinforced | 60 dB(A) | CE CSA UL VDE | ||||||||||||
ebm-papst Inc. | 2 Wire Leads | 230 VAC | 907.2 g | 2 lbs | Glass Filled Plastic | Ball | Blower Flatpak | 40 °C 37500 Hrs | 40 mm | 20 W | 50.6 CFM | 1.42 mł/min | 2550 RPM | 180 mm | 180 mm | Square | Plastic Fiberglass Reinforced | 60 dB(A) | CE CSA UL VDE | -30 °C | -22 °F | 70 °C | 158 °F | ||||||||
ebm-papst Inc. | 2 Wire Leads | 24 VDC | 725.7 g | 1.6 lbs | Glass Filled Plastic | Ball | Blower Centrifugal | 12 VDC | 28 VDC | 62500 Hrs | 40 mm | 5 W | 51.5 CFM | 1.44 m³/min | -30 ░C | 75 ░C | 75 °C | -30 °C | 2550 RPM | 180 mm | 180 mm | Square | Plastic Fiberglass Reinforced | 58 dB(A) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 84.50 | |
| 10 | $ 75.94 | |||
| 25 | $ 74.87 | |||
| 50 | $ 70.06 | |||
| 100 | $ 68.45 | |||
Description
General part information
RG125 Series
Fan Blower, Flatpak 230VAC Square - 180mm L x 180mm H Ball 50.6 CFM (1.42mł/min) 2 Wire Leads
