ActiveMill-Max Manufacturing Corp.

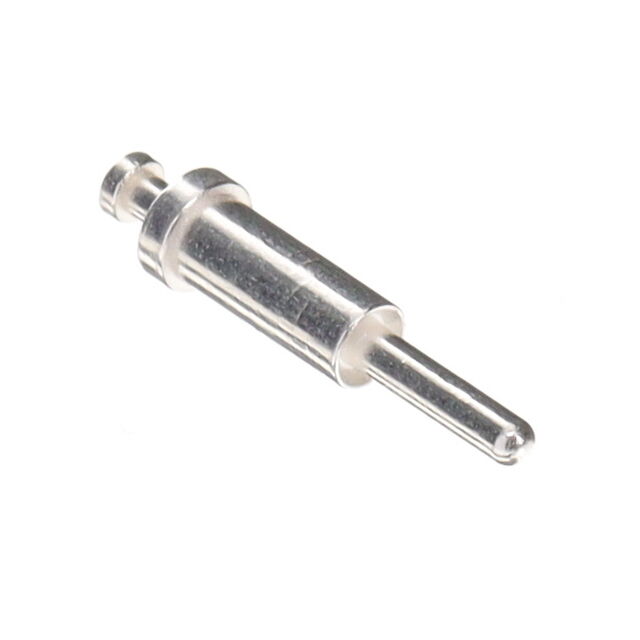

TERM TURRET PIN L=1.93MM SILVER
Deep-Dive with AI
Search across all available documentation for this part.
2309-4-00-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET PIN L=1.93MM SILVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2309-4-00-44-00-00-07-0 |
|---|---|
| Board Thickness | 3.18 mm |
| Board Thickness | 0.125 in |
| Contact Finish | Silver |
| Contact Finish Thickness | 300 µin |
| Contact Finish Thickness | 7.62 µm |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 1.14 mm |
| Diameter - Turret Head [diameter] | 0.045 in |
| Flange Diameter [diameter] | 0.078 in |
| Flange Diameter [diameter] | 1.98 mm |
| Insulation | Non-Insulated |
| Length - Above Board [x] | 1.93 mm |
| Length - Above Board [x] | 0.076 in |
| Length - Below Flange [x] | 7.29 mm |
| Length - Below Flange [x] | 0.287 in |
| Length - Overall [x] | 0.363 in |
| Length - Overall [x] | 9.22 mm |
| Mounting Hole Diameter | 1.63 mm |
| Mounting Hole Diameter [diameter] | 0.064 in |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Terminal Type | Double End, Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.75 | |
| 10 | $ 0.63 | |||
| 25 | $ 0.59 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.46 | |||
| 3000 | $ 0.42 | |||
Description
General part information
2309-4 Series
Terminal Turret Connector Double End, Pin 0.076" (1.93mm) Silver
