S2B-ZR-SM4A-TF

Active

JST Sales America Inc.

CONN HEADER SMD R/A 2POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD R/A 2POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	S2B-ZR-SM4A-TF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height	3.7 mm
Insulation Height	0.146 "
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Insulation Color	Contact Material	Number of Rows	Shrouding	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Termination	Connector Type	Insulation Material	Material Flammability Rating	Contact Shape	Contact Finish - Post	Fastening Type	Style	Voltage Rating	Mounting Type	Number of Positions Loaded	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Features
JST Sales America Inc. S2B-ZR-3.4	Natural	Brass	1	Shrouded - 4 Wall	3.7 mm	0.146 "	-25 °C	85 °C	Male Pin	0.134 in	3.4 mm	2	Solder	Header	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0	Circular	Tin	Detent Lock	Board to Cable/Wire	50 V	Through Hole Right Angle	All
JST Sales America Inc. S2B-ZR	Natural	Brass	1	Shrouded - 4 Wall	3.7 mm	0.146 "	-25 °C	85 °C	Male Pin	0.106 in	2.69 mm	2	Solder	Header	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0	Circular	Tin	Detent Lock	Board to Cable/Wire	50 V	Through Hole Right Angle	All	2.4 mm	0.094 in
JST Sales America Inc. S2B-ZR-SM2-TF	Natural	Brass	1	Shrouded - 4 Wall	3.7 mm	0.146 "	-25 °C	85 °C	Male Pin			2	Solder	Header	Glass Filled Nylon 4/6 Polyamide (PA46)	UL94 V-0	Circular	Tin	Detent Lock	Board to Cable/Wire	50 V	Surface Mount Right Angle	All	2.4 mm	0.094 in	Board Guide
JST Sales America Inc. S2B-ZR-SM4A-TF	Natural	Brass	1	Shrouded - 4 Wall	3.7 mm	0.146 "	-25 °C	85 °C	Male Pin			2	Solder	Header	Nylon 6T Polyamide (PA6T)	UL94 V-0	Circular	Tin	Detent Lock	Board to Cable/Wire	50 V	Surface Mount Right Angle	All			Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

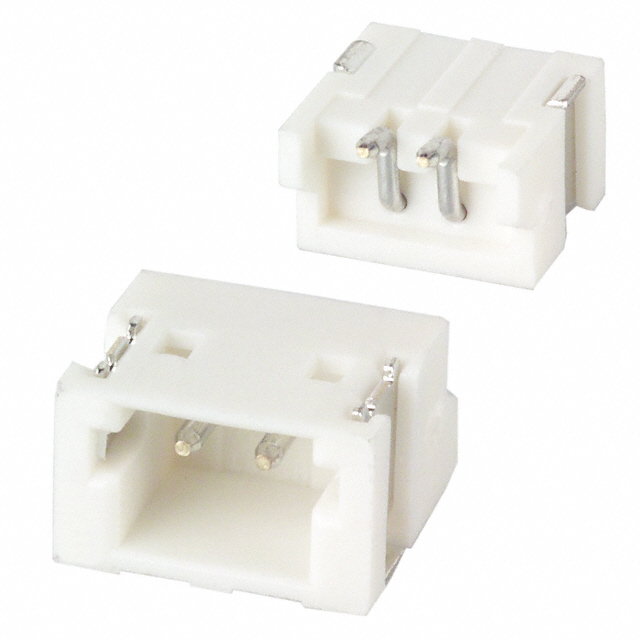

Connector Header Surface Mount, Right Angle 2 position 0.059" (1.50mm)
