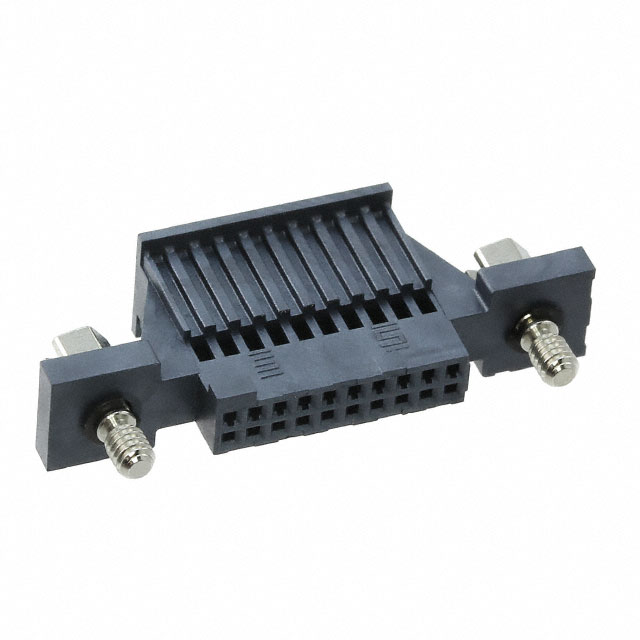

ISDF-10-D-S

Active

Samtec Inc.

CONN HOUSING RCP 20 POS 1.27MM CRIMP ST CABLE MOUNT BLACK TUBE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HOUSING RCP 20 POS 1.27MM CRIMP ST CABLE MOUNT BLACK TUBE

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Note	Color	Features	Number of Rows	Fastening Type	Contact Termination	Row Spacing	Row Spacing	Connector Type	Number of Positions	Insulation Material	Contact Type	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]
Samtec Inc. ISDF-10-D-DS	Free Hanging (In-Line)	Contacts Not Included	Black	Mating Flange	2	Latch Lock	Crimp	1.27 mm	0.05 in	Insulator	20	Liquid Crystal Polymer (LCP)	Female Socket	0.05 in	1.27 mm	-55 °C	125 °C
Samtec Inc. ISDF-10-D-S	Free Hanging (In-Line)	Contacts Not Included	Black	Mating Flange	2	Latch Lock	Crimp	1.27 mm	0.05 in	Insulator	20	Liquid Crystal Polymer (LCP)	Female Socket	0.05 in	1.27 mm	-55 °C	125 °C
Samtec Inc. ISDF-10-S	Free Hanging (In-Line)	Contacts Not Included	Black		1	Latch Lock	Crimp			Insulator	10	Liquid Crystal Polymer (LCP)	Female Socket	0.05 in	1.27 mm	-55 °C	125 °C
Samtec Inc. ISDF-10-S-M	Free Hanging (In-Line)	Contacts Not Included	Black	Retention Latches	1	Latch Lock	Crimp			Insulator	10	Liquid Crystal Polymer (LCP)	Female Socket	0.05 in	1.27 mm	-55 °C	125 °C
Samtec Inc. ISDF-10-S-R	Free Hanging (In-Line)	Contacts Not Included	Black		1	Latch Lock	Crimp			Insulator	10	Liquid Crystal Polymer (LCP)	Female Socket	0.05 in	1.27 mm	-55 °C	125 °C
Samtec Inc. ISDF-10-D	Free Hanging (In-Line)	Contacts Not Included	Black		2	Latch Lock	Crimp	1.27 mm	0.05 in	Insulator	20	Liquid Crystal Polymer (LCP)	Female Socket	0.05 in	1.27 mm	-55 °C	125 °C
