VSC7449YIH-02
ActiveIC TELECOM INTERFACE 672FCBGA
Deep-Dive with AI
Search across all available documentation for this part.
VSC7449YIH-02
ActiveIC TELECOM INTERFACE 672FCBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VSC7449YIH-02 |
|---|---|
| Current - Supply | 8.1 A |
| Function | Ethernet Switch |
| Interface | JTAG, SerDes |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |

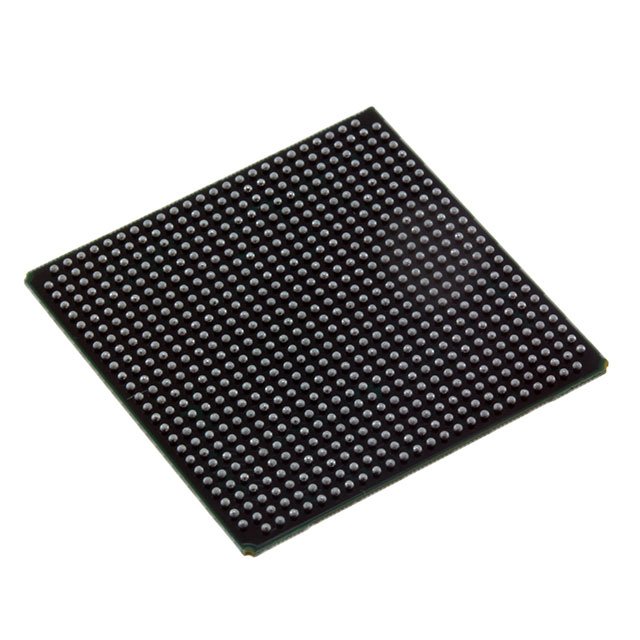

| Package / Case | 672-BBGA, FCBGA |
| Power (Watts) | 13.3 W |
| Supplier Device Package | 672-FCBGA (27x27) |
| Voltage - Supply [Max] | 1.05 V |
| Voltage - Supply [Min] | 0.95 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 186.30 | |
| 25 | $ 155.22 | |||
| 100 | $ 149.96 | |||
| Microchip Direct | TRAY | 1 | $ 186.30 | |
| 25 | $ 155.22 | |||
| 100 | $ 141.16 | |||
| 1000 | $ 130.42 | |||
| 5000 | $ 123.68 | |||
VSC7449 Series
52 Port 90G L2/L3 Switch
| Part | Current - Supply | Number of Circuits | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Package / Case | Function | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology VSC7449YIH-02 | 8.1 A | 1 | Surface Mount | 1.05 V | 0.95 V | 13.3 W | -40 °C | 110 °C | 672-FCBGA (27x27) | 672-BBGA, FCBGA | Ethernet Switch | JTAG, SerDes |
Description
General part information
VSC7449 Series
The VSC7449 SparX-IV-9 device is a 90 Gbps SMB/SME Industrial Ethernet switch with up to 52 ports supporting a combination of 1G, 2.5G, and 10G Ethernet ports.
The device provides a rich set of Enterprise Ethernet switching features. Using multistage Versatile Content Aware Processing (VCAP), it delivers VLAN and QoS processing that enables delivery of differentiated services, security through intelligent frame processing, and egress frame manipulation.
For industrial applications, VSC7449 integrates VeriTime, patent-pending timing technology that delivers the industry’s most accurate IEEE 1588v2 timing implementation.
