XRP7613IDBTR-F

Active

MaxLinear, Inc.

IC LED DRVR RGLTR PWM 1.2A 8SOIC

Search across all available documentation for this part.

Active

MaxLinear, Inc.

IC LED DRVR RGLTR PWM 1.2A 8SOIC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XRP7613IDBTR-F	XRP7613 Series

Applications	Lighting	Lighting
Current - Output / Channel [custom]	1.2 A	1.2 A
Dimming	Analog, PWM	Analog, PWM
Features	-	Dimmable
Frequency	1 MHz	1 MHz
Internal Switch(s)	True	True
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outputs and Type	-	1 Non-Isolated Output
Package / Case	0.154 in	0.154 in

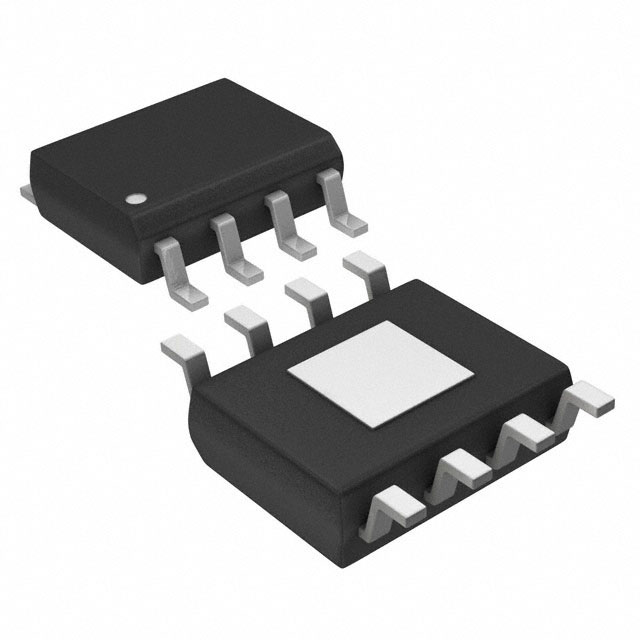

Package / Case	8-SOIC	8-SOIC
Package / Case	3.9 mm	3.9 mm
Supplied Contents	-	Board(s)
Supplier Device Package	8-SOIC-EP	8-SOIC-EP
Topology	Step-Down (Buck)	Step-Down (Buck)
Type	DC DC Regulator	DC DC Regulator
Utilized IC / Part	-	XRP7613
Voltage - Input	-	36 V
Voltage - Input	-	7 V
Voltage - Supply (Max) [Max]	36 V	36 V
Voltage - Supply (Min) [Min]	7 V	7 V

IC LED DRVR RGLTR PWM 1.2A 8SOIC

Part	Applications	Mounting Type	Supplier Device Package	Voltage - Supply (Min) [Min]	Internal Switch(s)	Voltage - Supply (Max) [Max]	Dimming	Frequency	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Topology	Current - Output / Channel [custom]	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Outputs and Type	Features
MaxLinear, Inc. XRP7613IDBTR-F	Lighting	Surface Mount	8-SOIC-EP	7 V		36 V	Analog, PWM	1 MHz	1	DC DC Regulator	85 °C	-40 °C	0.154 in	8-SOIC	3.9 mm	Step-Down (Buck)	1.2 A
MaxLinear, Inc. XRP7613EVB																	1.2 A	XRP7613	36 V	7 V	Board(s)	1 Non-Isolated Output	Dimmable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Driver IC 1 Output DC DC Regulator Step-Down (Buck) Analog, PWM Dimming 1.2A 8-SOIC-EP
