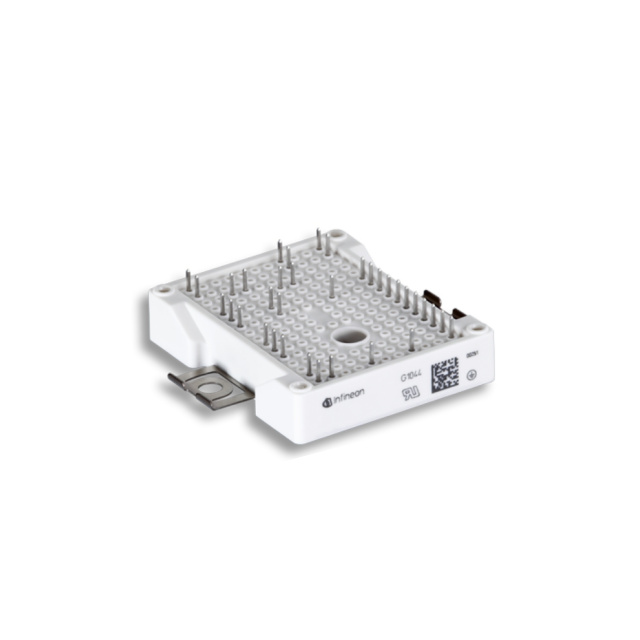

F3L200R07W2S5FB11BOMA1

Active

Infineon Technologies

THE F3L200R07W2S5F_B11 IS A 3-LEVEL TRENCHSTOP™ 5 MODULE IN A EASYPACK™ HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 650 V AND 200 A.

Search across all available documentation for this part.

Active

Infineon Technologies

THE F3L200R07W2S5F_B11 IS A 3-LEVEL TRENCHSTOP™ 5 MODULE IN A EASYPACK™ HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 650 V AND 200 A.

Technical Specifications

Parameters and characteristics for this part

Specification	F3L200R07W2S5FB11BOMA1

Configuration	Three Level Inverter
Current - Collector (Ic) (Max) [Max]	95 A
Current - Collector Cutoff (Max) [Max]	1 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	14.3 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	20 mW
Supplier Device Package	AG-EASY2B
Vce(on) (Max) @ Vge, Ic	1.38 V
Voltage - Collector Emitter Breakdown (Max)	650 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	IGBT Type	Package / Case	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max) [Max]	Input Capacitance (Cies) @ Vce	Input	Current - Collector Cutoff (Max) [Max]	Mounting Type	Configuration
Infineon Technologies F3L200R07W2S5FB11BOMA1	150 °C	-40 °C	AG-EASY2B	Trench Field Stop	Module	20 mW	1.38 V	650 V	95 A	14.3 nF	Standard	1 mA	Chassis Mount	Three Level Inverter
Infineon Technologies F3L200R12W2H3PB11BPSA1
Infineon Technologies F3L200R07PE4BOSA1			Module	Trench Field Stop	Module	680 W	1.95 V	650 V	200 A	12.5 nF	Standard	1 mA	Chassis Mount	Three Phase Inverter

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EasyPACK™650 V, 200 A 3-levelIGBT modulewithTRENCHSTOP™ 5,CoolSiC™ Schottky Diode, NTC andPressFIT contact technology.
