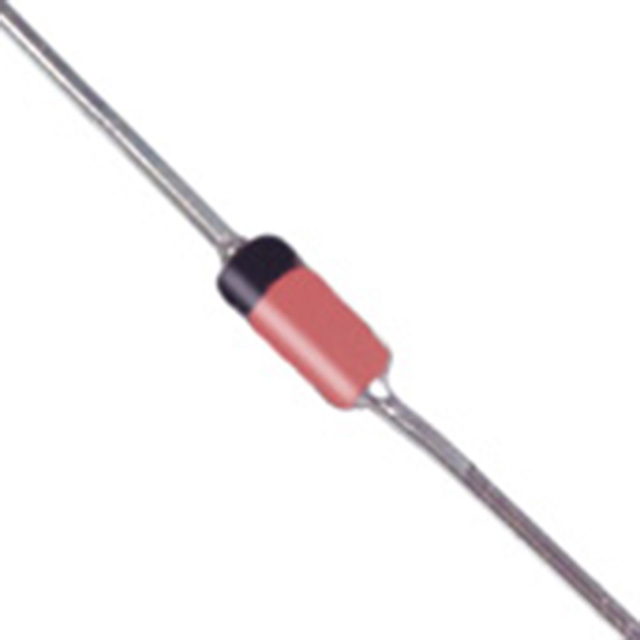

SD101A-A

Obsolete

Diodes Inc

DIODE SCHOTTKY 60V 15MA DO35

Search across all available documentation for this part.

Obsolete

Diodes Inc

DIODE SCHOTTKY 60V 15MA DO35

Technical Specifications

Parameters and characteristics for this part

Specification	SD101A-A

Capacitance @ Vr, F	2 pF
Current - Average Rectified (Io)	15 mA
Current - Reverse Leakage @ Vr	200 nA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Axial, DO-35, DO-204AH
Reverse Recovery Time (trr)	1 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	DO-35
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V
Voltage - Forward (Vf) (Max) @ If	1 V

Schottky

Part	Capacitance @ Vr, F	Supplier Device Package	Current - Average Rectified (Io)	Mounting Type	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Technology	Package / Case
Diodes Inc SD101AW-7-F	2 pF	SOD-123	15 mA	Surface Mount	Any Speed	200 mA	60 V	125 °C	-65 C	200 nA	1 V	1 ns	Schottky	SOD-123
Diodes Inc SD101AW-13-F	2 pF	SOD-123	15 mA	Surface Mount	Any Speed	200 mA	60 V	125 °C	-65 C	200 nA	1 V	1 ns	Schottky	SOD-123
Diodes Inc SD101AWS-7	2 pF	SOD-323	15 mA	Surface Mount	Any Speed	200 mA	60 V	125 °C	-65 C	200 µA	1 V	1 ns	Schottky	SC-76 SOD-323
Diodes Inc SD101A-A	2 pF	DO-35	15 mA	Through Hole	Any Speed	200 mA	60 V	175 ░C	-65 C	200 nA	1 V	1 ns	Schottky	Axial DO-204AH DO-35
