1625-5-57-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

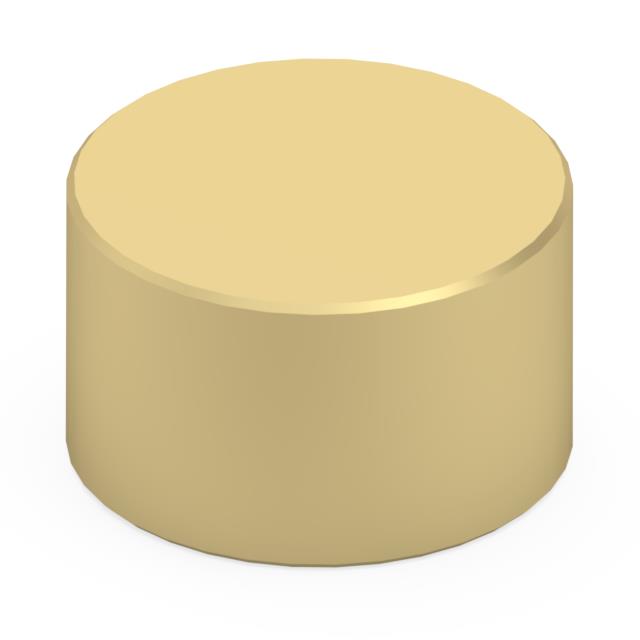

.075" HIGH SMT TARGET DISC
Deep-Dive with AI
Search across all available documentation for this part.
1625-5-57-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
.075" HIGH SMT TARGET DISC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1625-5-57-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Contact Type | Contact Pad |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 3.18 mm |
| Pad Layout Dimension [diameter] | 0.125 in |
| Pad Layout Dimension [z] | 0.075 in |
| Pad Layout Dimension [z] | 1.91 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.91 | |
| 10 | $ 0.69 | |||
| 25 | $ 0.62 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.53 | |||
| 250 | $ 0.48 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.41 | |||
| Digi-Reel® | 1 | $ 0.91 | ||
| 10 | $ 0.69 | |||
| 25 | $ 0.62 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.53 | |||
| 250 | $ 0.48 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.41 | |||
| Tape & Reel (TR) | 3625 | $ 0.37 | ||
| 7250 | $ 0.36 | |||
| 10875 | $ 0.33 | |||
| 18125 | $ 0.33 | |||
| 25375 | $ 0.32 | |||
Description
General part information
1625-5 Series
Contact Spring Surface Mount
Documents
Technical documentation and resources
No documents available
