11-6S-W

Active

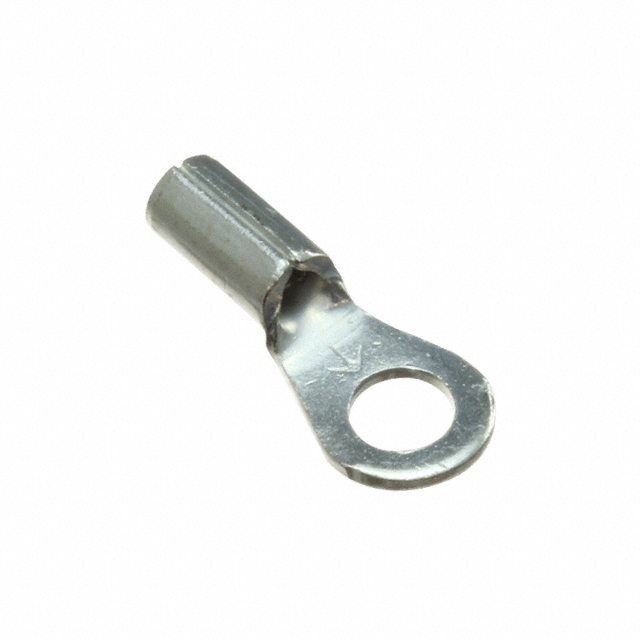

CONN RING CIRC 18-22AWG #6 CRIMP

Search across all available documentation for this part.

Active

CONN RING CIRC 18-22AWG #6 CRIMP

Technical Specifications

Parameters and characteristics for this part

CONN RING CIRC 18-22AWG #6 CRIMP

Part	Features	Stud/Tab Size	Terminal Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Mounting Type	Insulation	Contact Finish	Thickness	Thickness	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material
3M 11-6S-W	Brazed Seam	6 Stud	Circular	0.25 "	6.35 mm	Crimp	Free Hanging (In-Line)	Non-Insulated	Tin	0.03 in	0.76 mm	0.6 in	15.24 mm	22 AWG	17.5 AWG	Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.13

General part information

Ring Terminal Connector 6 Stud Circular 18-22 AWG Crimp

Technical documentation and resources

No documents available
