ICF-624-T-O-TR
ActiveSamtec Inc.

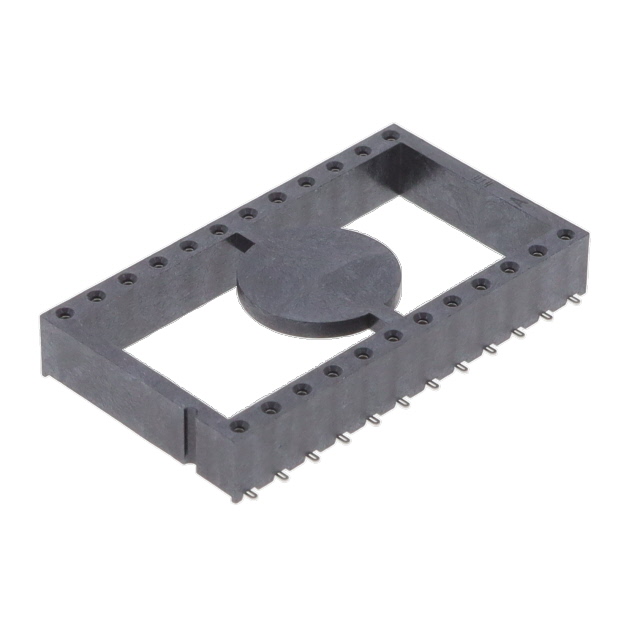

PCB DIP SOCKET, 24POS, 2.54MM, SMD ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
ICF-624-T-O-TR
ActiveSamtec Inc.
PCB DIP SOCKET, 24POS, 2.54MM, SMD ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ICF-624-T-O-TR |
|---|---|
| Contact Finish - Post | Tin |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Features | Open Frame |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions or Pins (Grid) | 24 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Type | DIP |
| Type | 0.6 in |
| Type | 15.24 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.06 | |
| 10 | $ 3.87 | |||
| 25 | $ 3.49 | |||
| 50 | $ 3.23 | |||
| 100 | $ 3.00 | |||
| Digi-Reel® | 1 | $ 5.06 | ||
| 10 | $ 3.87 | |||
| 25 | $ 3.49 | |||
| 50 | $ 3.23 | |||
| 100 | $ 3.00 | |||
| Tape & Reel (TR) | 275 | $ 2.70 | ||
| 550 | $ 2.51 | |||
| 825 | $ 2.41 | |||
| 1375 | $ 2.29 | |||
| 1925 | $ 2.22 | |||
| 2750 | $ 2.15 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 3.85 | |
| 10 | $ 3.68 | |||
| 100 | $ 3.09 | |||
| 500 | $ 2.61 | |||
| 1000 | $ 2.22 | |||
| 2500 | $ 2.04 | |||
| 5000 | $ 2.00 | |||
Description
General part information
ICF-624 Series
24 (2 x 12) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Surface Mount
