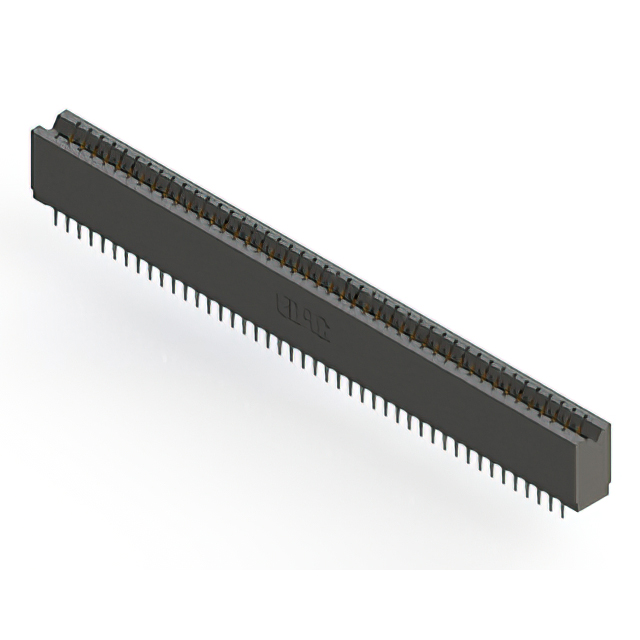

746-088-560-206

Active

EDAC Inc.

CONN EDGE DUAL FMALE 88POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

746-088-560-206

Active

EDAC Inc.

CONN EDGE DUAL FMALE 88POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	746-088-560-206

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever, Make Before Break
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	88
Number of Positions/Bay/Row [custom]	44
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

746-088 Series

Part	Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Pitch [x]	Pitch [x]	Contact Material	Gender	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Rows	Color	Number of Positions	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Read Out	Contact Type	Contact Finish
EDAC Inc. 746-088-545-606	Press-Fit Wire Wrap	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	0.125 in	3.18 mm	Copper Alloy	Female	2	44	2	Black	88	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Dual	Cantilever	Gold
EDAC Inc. 746-088-525-206	Press-Fit	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	0.125 in	3.18 mm	Copper Alloy	Female	2	44	2	Black	88	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Dual	Cantilever	Gold
EDAC Inc. 746-088-541-206	Press-Fit Wire Wrap	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	0.125 in	3.18 mm	Copper Alloy	Female	2	44	2	Black	88	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Dual	Cantilever	Gold
EDAC Inc. 746-088-527-201	Press-Fit	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	0.125 in	3.18 mm	Copper Alloy	Female	2	44	2	Black	88	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Dual	Cantilever	Gold
EDAC Inc. 746-088-520-601	Press-Fit	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	0.125 in	3.18 mm	Copper Alloy	Female	2	44	2	Black	88	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Dual	Cantilever	Gold
EDAC Inc. 746-088-525-601	Press-Fit	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	0.125 in	3.18 mm	Copper Alloy	Female	2	44	2	Black	88	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Dual	Cantilever	Gold
EDAC Inc. 746-088-540-606	Press-Fit Wire Wrap	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	0.125 in	3.18 mm	Copper Alloy	Female	2	44	2	Black	88	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Dual	Cantilever	Gold
EDAC Inc. 746-088-520-206	Press-Fit	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	0.125 in	3.18 mm	Copper Alloy	Female	2	44	2	Black	88	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Dual	Cantilever	Gold
EDAC Inc. 746-088-560-206	Press-Fit	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	0.125 in	3.18 mm	Copper Alloy	Female	2	44	2	Black	88	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Dual	Cantilever Make Before Break	Gold
EDAC Inc. 746-088-527-606	Press-Fit	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	0.125 in	3.18 mm	Copper Alloy	Female	2	44	2	Black	88	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Dual	Cantilever	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 14.06
Newark	Each	1	$ 14.67
		100	$ 10.03
		250	$ 9.08
		500	$ 8.85
		1000	$ 7.58

Description

General part information

746-088 Series

88 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
