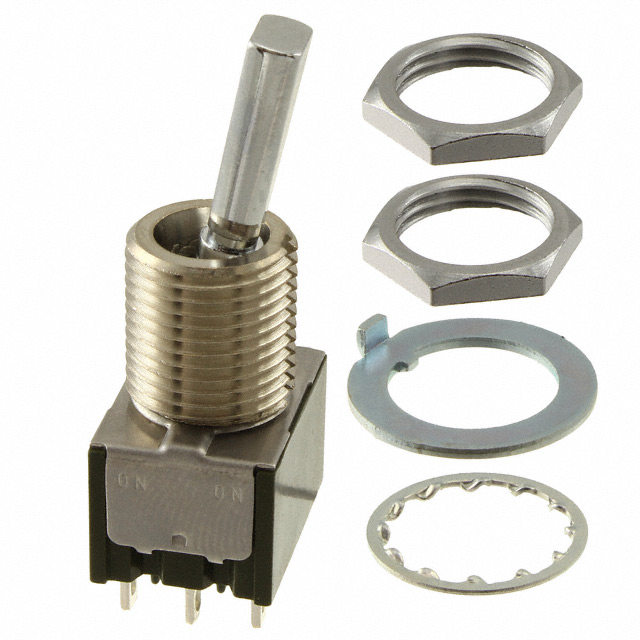

M2032RB1W01

Obsolete

NKK Switches

BUSHING MOUNT MINIATURE TOGGLE

Search across all available documentation for this part.

Obsolete

NKK Switches

BUSHING MOUNT MINIATURE TOGGLE

Technical Specifications

Parameters and characteristics for this part

Specification	M2032RB1W01

Actuator Length [x]	15.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Flatted
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	3PDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Features	Voltage Rating - AC	Illumination	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Actuator Type	Electrical Life	Panel Cutout Dimensions [diameter]	Switch Function	Bushing Thread	Bushing Thread	Circuit	Voltage Rating - DC	Actuator Material	Termination Style
NKK Switches M2032RB1W01	Epoxy Sealed Terminals	125 V	Non-Illuminated	4 A 6 A	-30 ░C	85 °C	15.5 mm	Flatted	25000 Steps	12.5 mm	On-On	M12	1 x 1	3PDT	30 V	Brass Chrome Plated	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch 3PDT Panel Mount
