7380-4PG-300

Active

Conxall/Switchcraft

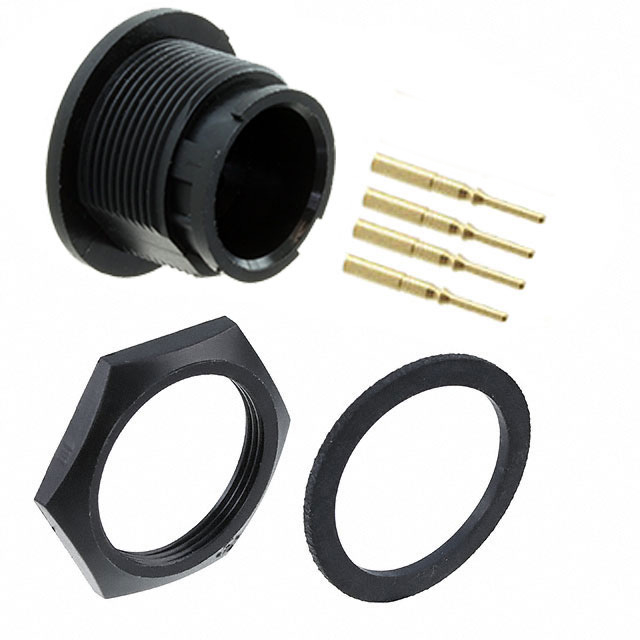

CONN RCPT MALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	7380-4PG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

CONN RCPT MALE 4POS GOLD CRIMP

Part	Voltage Rating	Mounting Feature	Backshell Material, Plating	Fastening Type	Contact Material	Color	Ingress Protection	Termination	Shielding	Orientation	Applications	Number of Positions	Current Rating (Amps)	Contact Finish - Mating	Primary Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]
Conxall/Switchcraft 7380-4PG-300	600 V	Bulkhead - Front Side Nut	Nylon, Polyamide (PA)	Bayonet Lock	Brass	Black	Weathertight	Crimp	Unshielded	Keyed	Automotive, Communication Systems, Instrumentation	4	Varies by Wire Gauge	Gold	Plastic	Male Pins, Receptacle	-40 °C	115 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Crimp
