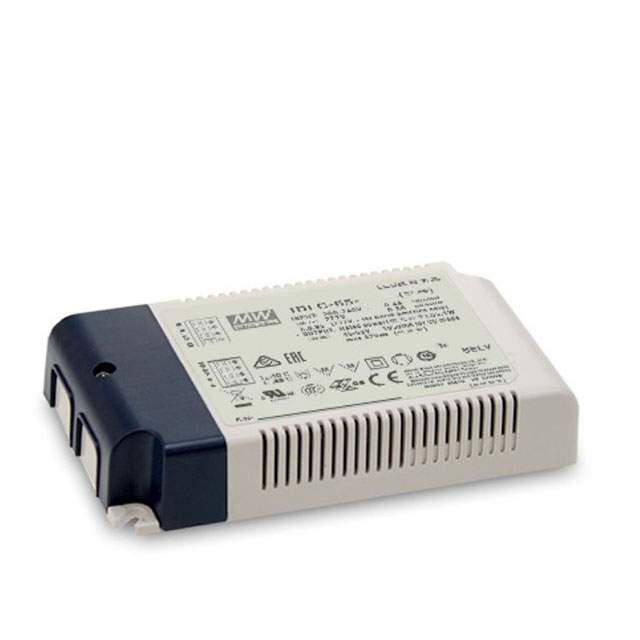

IDLC-65-1400DA

Obsolete

MEAN WELL USA Inc.

O/P +34~46V1400MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IDLC-65-1400DA

Obsolete

MEAN WELL USA Inc.

O/P +34~46V1400MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IDLC-65-1400DA

Approval Agency	CCC, CB, cURus, EAC, ENEC, RCM, CE
Current - Output (Max) [Max]	1.4 A
Dimming	DALI
Efficiency	86 %
Features	SCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Power (Watts)	64 W
Size / Dimension [x]	5.12 "
Size / Dimension [x]	130 mm
Size / Dimension [y]	2.95 in
Size / Dimension [y]	75 mm
Size / Dimension [z]	0.98 in
Size / Dimension [z]	25 mm
Termination Style	Terminal Block
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	295 VAC
Voltage - Input (Min) [Min]	180 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	64 V
Voltage - Output [Min]	34 V

IDLC-65 Series

Part	Number of Outputs	Topology	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Features	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Dimming	Voltage - Isolation	Power (Watts)	Current - Output (Max) [Max]	Mounting Type	Approval Agency	Type	Voltage - Output	Ratings	Standard Number	Voltage - Output [Max]	Voltage - Output [Min]
MEAN WELL USA Inc. IDLC-65-1400	1	AC DC Converter	86 %	5.12 "	2.95 in	130 mm	0.98 in	75 mm	25 mm	SCP	295 VAC	180 VAC	85 °C	-20 C	Terminal Block	Analog PWM	3750 V	64 W	1.4 A	Chassis Mount	CB CCC CE cURus ENEC	Constant Current
MEAN WELL USA Inc. IDLC-65-1050DA	1	AC DC Converter		5.12 "	2.95 in	130 mm	0.98 in	75 mm	25 mm		295 VAC	180 VAC			Terminal Block			65 W	1.05 A	Chassis Mount	CB CCC CE cURus EAC ENEC RCM	Constant Current	62 V	IP20
MEAN WELL USA Inc. IDLC-65-700DA	1	AC DC Converter	86 %	5.12 "	2.95 in	130 mm	0.98 in	75 mm	25 mm	SCP	295 VAC	180 VAC	85 °C	-20 C	Terminal Block	Analog PWM	3750 V	63 W	1.05 A	Chassis Mount	CB CCC CE cURus EAC ENEC RCM	Constant Current			UL 8750	36 V	27 V
MEAN WELL USA Inc. IDLC-65-1400DA	1	AC DC Converter	86 %	5.12 "	2.95 in	130 mm	0.98 in	75 mm	25 mm	SCP	295 VAC	180 VAC	85 °C	-20 C	Terminal Block	DALI	3750 V	64 W	1.4 A	Chassis Mount	CB CCC CE cURus EAC ENEC RCM	Constant Current				64 V	34 V
MEAN WELL USA Inc. IDLC-65-700	1	AC DC Converter	89 %	5.12 "	2.95 in	130 mm	0.98 in	75 mm	25 mm	SCP	295 VAC	180 VAC	85 °C	-20 C	Terminal Block	Analog PWM	3750 V	65 W	700 mA	Chassis Mount	CB CCC CE cURus ENEC	Constant Current

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

IDLC-65 Series

1.4A 34 ~ 64V Constant Current LED Driver AC DC Converter Topology 1 Output
