ST62E25CF1
ObsoleteSTMicroelectronics
IC MCU 8BIT 4KB EPROM/UV 28DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ST62E25CF1
ObsoleteSTMicroelectronics
IC MCU 8BIT 4KB EPROM/UV 28DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST62E25CF1 |
|---|---|
| Core Processor | ST6 |
| Core Size | 8-Bit |
| Data Converters [custom] | 16 |
| Data Converters [custom] | 8 bits |
| Mounting Type | Through Hole |
| Number of I/O | 20 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Oscillator Type | Internal |

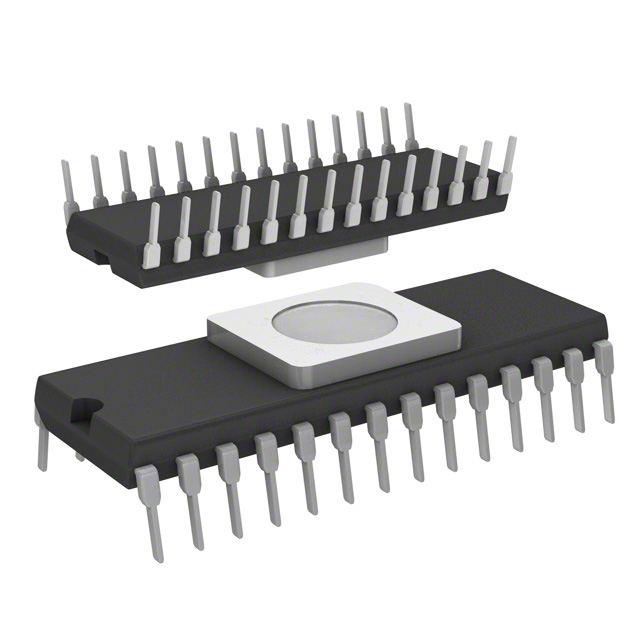

| Package / Case | 28-CDIP Window |
| Package / Case | 0.6 in |
| Package / Case | 15.24 mm |
| Program Memory Size | 4 KB |
| Program Memory Type | UV, EPROM |
| RAM Size | 64 x 8 |
| Speed | 8 MHz |
| Voltage - Supply (Vcc/Vdd) [Max] | 6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ST62E Series
ST6 ST6 Microcontroller IC 8-Bit 8MHz 4KB (4K x 8) EPROM, UV
