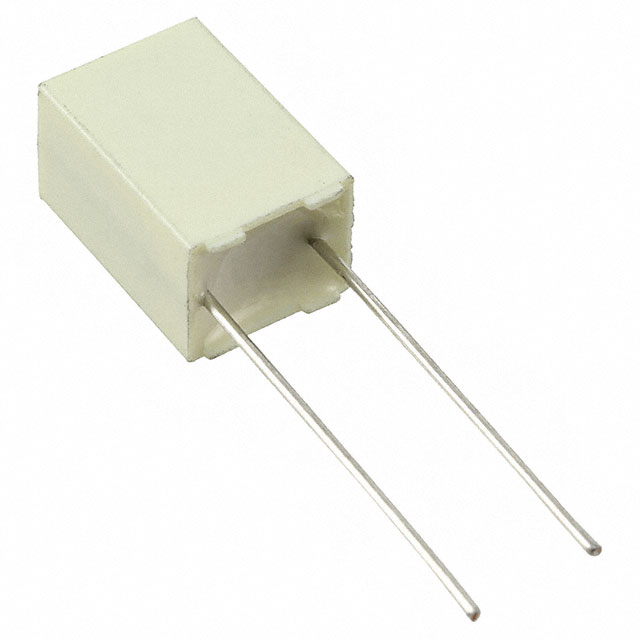

RSBCC4220DQ10J

Active

KEMET

CAP FILM 2.2UF 5% 50VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 2.2UF 5% 50VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	RSBCC4220DQ10J

Applications	General Purpose
Capacitance	2.2 µF
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Features	High Temperature
Height - Seated (Max) [Max]	0.437 in
Height - Seated (Max) [Max]	11.1 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	7.2 mm
Size / Dimension [x]	0.283 in
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	30 V
Voltage Rating - DC	50 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - DC	Mounting Type	Features	Voltage Rating - AC	Capacitance	Applications	Termination	Lead Spacing	Lead Spacing	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Dielectric Material
KEMET RSBCC4220DQ10J	-55 °C	125 °C	Radial	5 %	0.437 in	11.1 mm	50 VDC	Through Hole	High Temperature	30 V	2.2 µF	General Purpose	PC Pins	5 mm	0.197 in	7.2 mm	0.283 in	0.236 in	6 mm	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	11200	$ 0.42
Newark	Each	2500	$ 0.45

General part information

2.2 µF Film Capacitor 30V 50V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial
