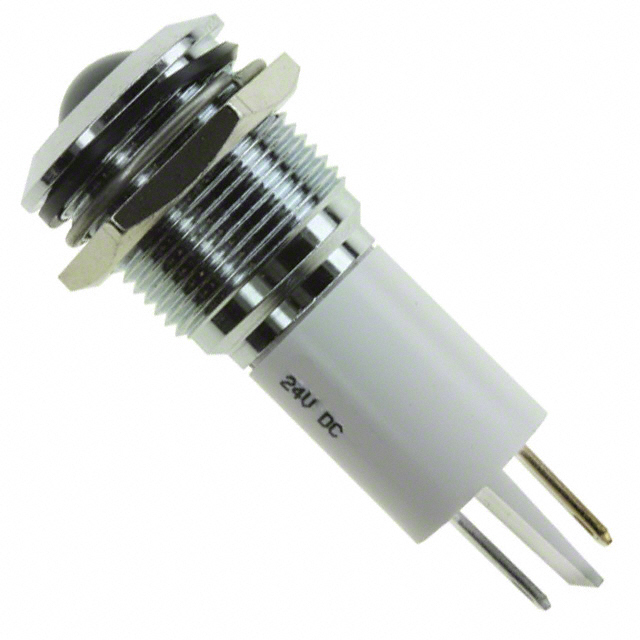

Q16P1CXXW24E
ActiveAPEM
LED PANEL MOUNT INDICATOR, WHITE, 24 VDC, 16 MM, 20 MA, 350 MCD, IP67
Deep-Dive with AI
Search across all available documentation for this part.
Q16P1CXXW24E
ActiveAPEM
LED PANEL MOUNT INDICATOR, WHITE, 24 VDC, 16 MM, 20 MA, 350 MCD, IP67
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q16P1CXXW24E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | White |
| Lens Color | White |
| Lens Size [diameter] | 10 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 1000 mcd |
| Panel Cutout Dimensions | 0.63 in |
| Panel Cutout Dimensions | 16 mm |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Q16P1CXXW Series
LED Panel Indicator White Diffused 100° 24V 20mA Quick Connect - 0.110" (2.8mm)
