SLSCP14-750Q88

Active

BANNER ENGINEERING

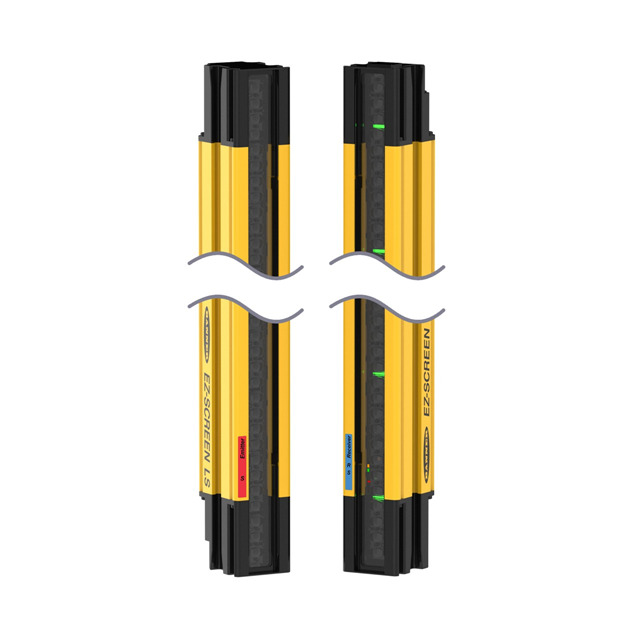

LIGHT CURTAIN FINGER 14MM

Search across all available documentation for this part.

Active

BANNER ENGINEERING

LIGHT CURTAIN FINGER 14MM

Technical Specifications

Parameters and characteristics for this part

Specification	SLSCP14-750Q88

Detection Capability	14 mm
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Beams [custom]	100
Operating Range [Max]	6 m
Operating Range [Min]	0.1 m
Protection	Finger
Protective Height [z]	750 mm
Voltage - Supply	24 VDC

Part	Detection Capability	Number of Beams [custom]	Protection	Voltage - Supply	Protective Height [z]	Operating Range [Min]	Operating Range [Max]	Ingress Protection
BANNER ENGINEERING SLSCP14-750Q88	14 mm	100	Finger	24 VDC	750 mm	0.1 m	6 m	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3527.01
Newark	Each	1	$ 3587.00

General part information

Light Curtain 14mm Finger

Technical documentation and resources

No documents available
