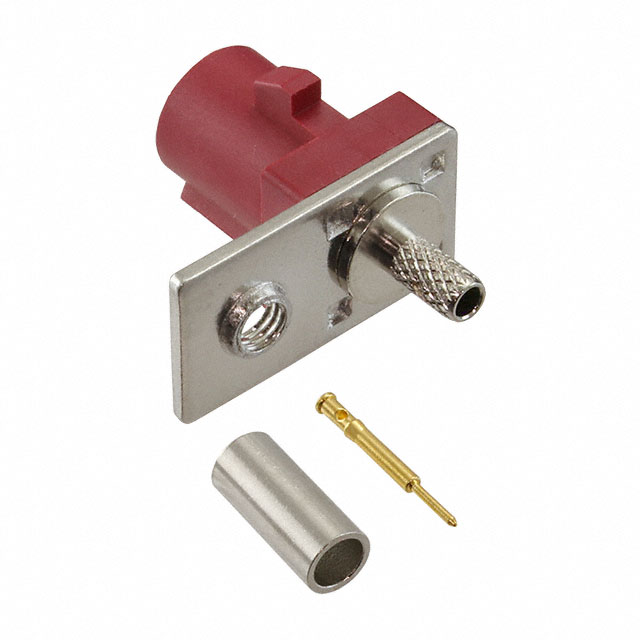

RF55-27L-T-02-50-A-SH

Active

FAKRA PLUG SMB TYPE:STRAIGHT

Active

FAKRA PLUG SMB TYPE:STRAIGHT

Description

General part information

SMB, Fakra Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Parameters and characteristics for this part

Specification	RF55-27L-T-02-50-A-SH

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	Fakra, SMB
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code L
Frequency - Max	4 GHz
Housing Color	Red, Carmine
Impedance	50 Ohm
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Crimp

Part	Cable Group	Impedance	Shield Termination	Connector Style	Features	Connector Type	Number of Ports	Mounting Type	Frequency - Max	Center Contact Material	Contact Termination	Housing Color	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Dielectric Material	Body Finish	Center Contact Plating
Adam Tech RF55-27C-T-02-50-A-SH	316 RG-174	50 Ohm	Crimp	Fakra SMB	Code C	Male Pin Plug	1	Free Hanging (In-Line)	4 GHz	Brass	Crimp	Blue	Locking Ramp	-40 °C	85 °C	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Gold
Adam Tech RF55-27F-T-02-50-A-SH	316 RG-174	50 Ohm	Crimp	Fakra SMB	Code F	Male Pin Plug	1	Free Hanging (In-Line)	4 GHz	Brass	Crimp	Brown	Locking Ramp	-40 °C	85 °C	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Gold
Adam Tech RF55-27B-T-02-50-A-SH	316 RG-174	50 Ohm	Crimp	Fakra SMB	Code B	Male Pin Plug	1	Free Hanging (In-Line)	4 GHz	Brass	Crimp	White	Locking Ramp	-40 °C	85 °C	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Gold
Adam Tech RF55-27L-T-02-50-A-SH	316 RG-174	50 Ohm	Crimp	Fakra SMB	Code L	Male Pin Plug	1	Free Hanging (In-Line)	4 GHz	Brass	Crimp	Carmine Red	Locking Ramp	-40 °C	85 °C	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Gold
Adam Tech RF55-27K-T-02-50-A-SH	316 RG-174	50 Ohm	Crimp	Fakra SMB	Code K	Male Pin Plug	1	Free Hanging (In-Line)	4 GHz	Brass	Crimp	Curry	Locking Ramp	-40 °C	85 °C	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Gold
