SLPE25-830P8

Active

BANNER ENGINEERING

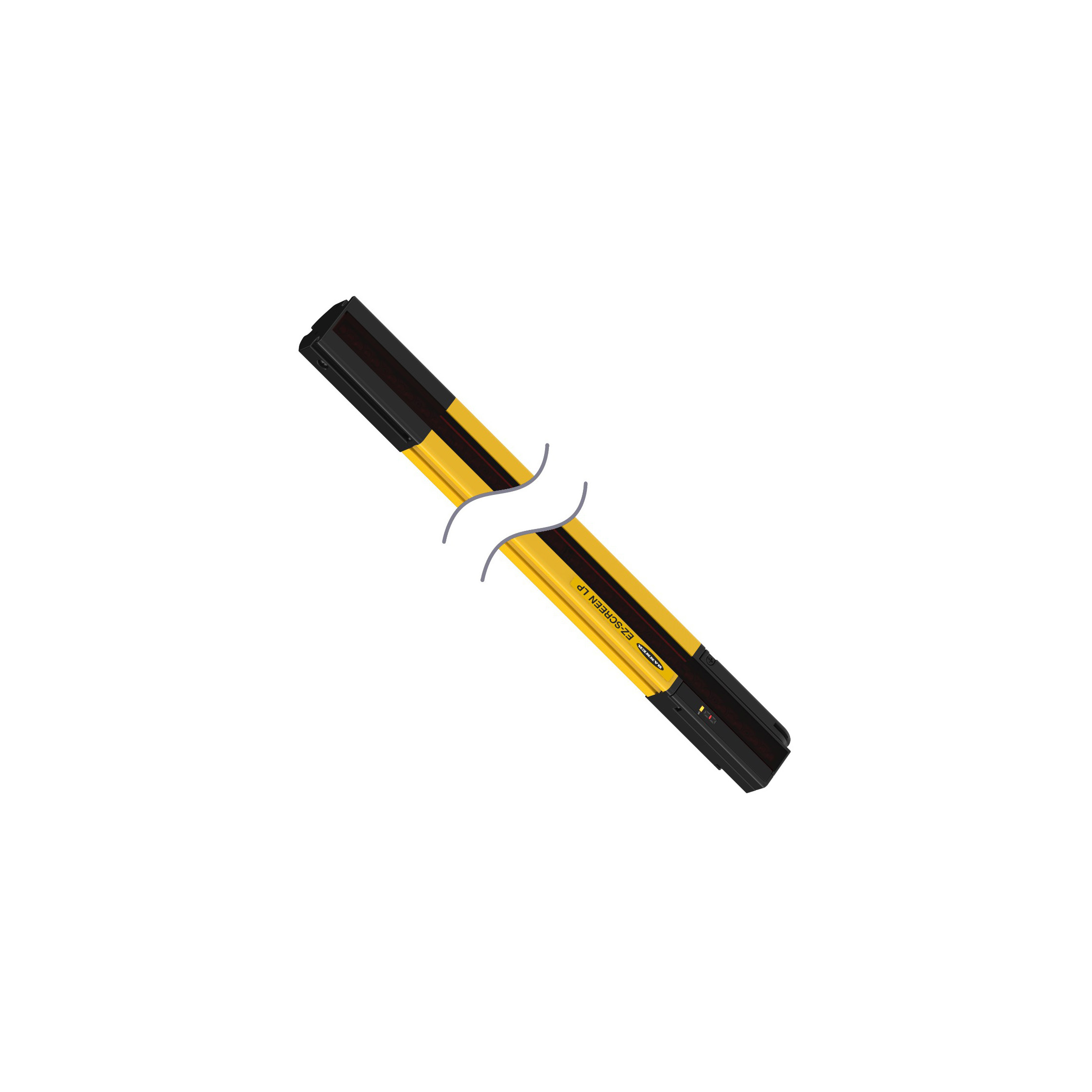

SLPE25-830P8 EZ-SCREEN LOW PROFILE EMITTER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SLPE25-830P8 EZ-SCREEN LOW PROFILE EMITTER

Technical Specifications

Parameters and characteristics for this part

Specification	SLPE25-830P8

Detection Capability	25 mm
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Beams	42
Operating Range [Max]	7 m
Operating Range [Min]	0.1 m
Protection	Hand
Protective Height [z]	830 mm
Voltage - Supply	24 VDC

Part	Protection	Voltage - Supply	Number of Beams	Detection Capability	Protective Height [z]	Ingress Protection	Operating Range [Max]	Operating Range [Min]
BANNER ENGINEERING SLPE25-830P8	Hand	24 VDC	42	25 mm	830 mm	IP65 - Dust Tight Water Resistant	7 m	0.1 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1148.01
Newark	Each	1	$ 1177.00

General part information

Light Curtain 25mm Hand

Technical documentation and resources
