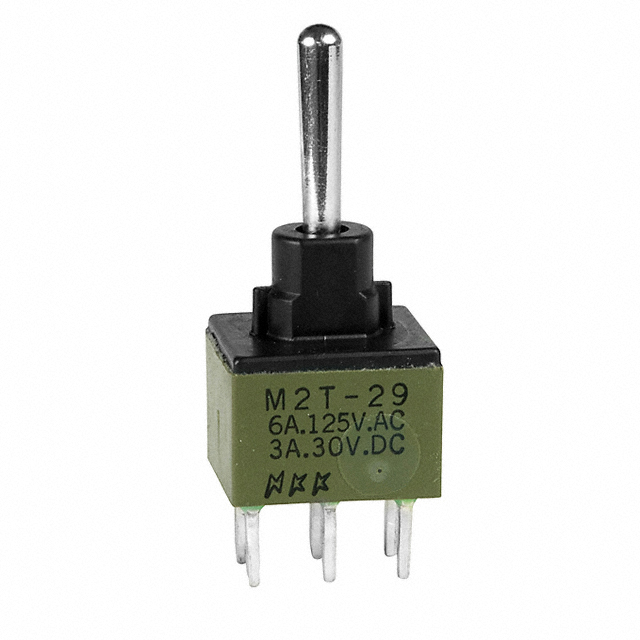

M2T29SA5W03
ObsoleteNKK Switches
SWITCH TOGGLE DPDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M2T29SA5W03
ObsoleteNKK Switches
SWITCH TOGGLE DPDT 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2T29SA5W03 |
|---|---|
| Actuator Length [x] | 0.5 in |
| Actuator Material | Brass, Nickel Plated |
| Actuator Type | Standard Round |
| Bushing Thread | Unthreaded |
| Circuit | DPDT |
| Current Rating (Amps) | 3 A, 6 A |
| Electrical Life | 25000 Steps |
| Features | Process Sealed |
| Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-Off-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.93 | |
| 10 | $ 7.13 | |||
| 25 | $ 6.80 | |||
| 40 | $ 6.51 | |||
Description
General part information
M2T29SA Series
Toggle Switch DPDT Through Hole
