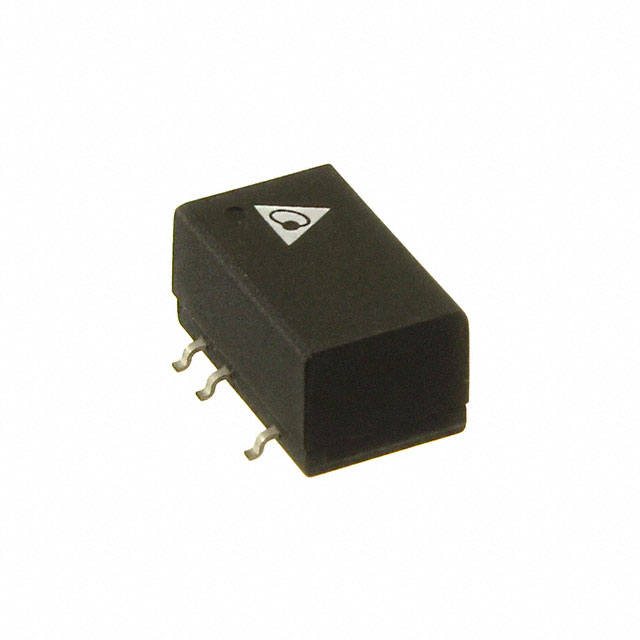

SH01S1512A

Active

Delta Electronics

DC DC CONVERTER 12V 1W

Search across all available documentation for this part.

Active

Delta Electronics

DC DC CONVERTER 12V 1W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 6.29

General part information

Isolated Module DC DC Converter 1 Output 12V 84mA 13.5V - 16.5V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 5V 1W

Part	Efficiency	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Number of Outputs	Voltage - Input (Max) [Max]	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Voltage - Isolation	Mounting Type	Voltage - Input (Min) [Min]	Package / Case	Features
Delta Electronics SH01S0505A	78 %	200 mA	85 °C	-40 °C	5 V	1	5.5 V	Isolated Module	7 mm	0.31 "	0.28 "	13.7 mm	8 mm	0.54 in	Medical	1.5 kV	Surface Mount	4.5 V	8-SMD Module, 5 Leads	SCP
Delta Electronics SH01S1512A	78 %	84 mA	85 °C	-40 °C	12 V	1	16.5 V	Isolated Module	7 mm	0.31 "	0.28 "	13.7 mm	8 mm	0.54 in	Medical	1.5 kV	Surface Mount	13.5 V	8-SMD Module, 5 Leads	SCP
Delta Electronics SH01S2415A	79 %	67 mA	85 °C	-40 °C	15 V	1	26.4 V	Isolated Module	7 mm	0.31 "	0.28 "	13.7 mm	8 mm	0.54 in	Medical	1.5 kV	Surface Mount	21.6 V	8-SMD Module, 5 Leads	SCP
Delta Electronics SH01S0503A	73 %	300 mA	85 °C	-40 °C	3.3 V	1	5.5 V	Isolated Module	7 mm	0.31 "	0.28 "	13.7 mm	8 mm	0.54 in	Medical	1.5 kV	Surface Mount	4.5 V	8-SMD Module, 5 Leads	SCP
Delta Electronics SH01S2412A	77 %	84 mA	85 °C	-40 °C	12 V	1	26.4 V	Isolated Module	7 mm	0.31 "	0.28 "	13.7 mm	8 mm	0.54 in	Medical	1.5 kV	Surface Mount	21.6 V	8-SMD Module, 5 Leads	SCP
