LTM8060IY#PBF
ActiveQUAD 40VIN, SILENT SWITCHER ΜMODULE REGULATOR WITH CONFIGURABLE 3A OUTPUT ARRAY
Deep-Dive with AI
Search across all available documentation for this part.
LTM8060IY#PBF
ActiveQUAD 40VIN, SILENT SWITCHER ΜMODULE REGULATOR WITH CONFIGURABLE 3A OUTPUT ARRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTM8060IY#PBF |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 3 A |
| Features | Adjustable Output |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

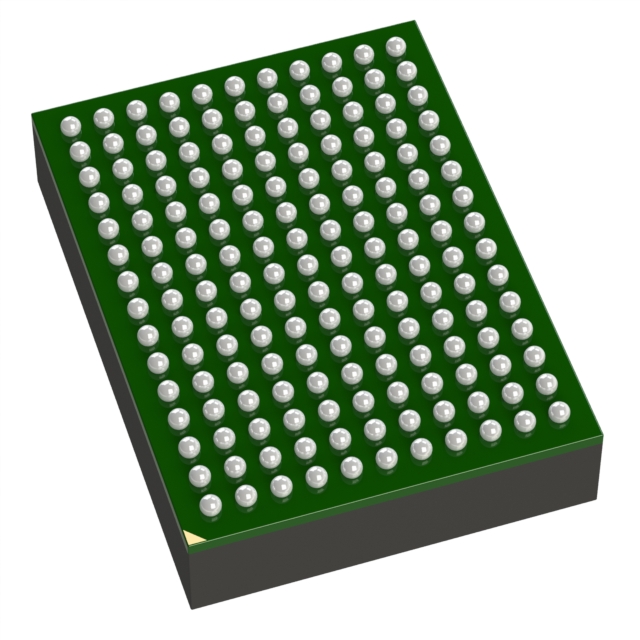

| Package / Case | 165-BBGA Module |
| Size / Dimension [x] | 0.63 " |
| Size / Dimension [x] | 16 mm |
| Size / Dimension [y] | 0.47 " |
| Size / Dimension [y] | 11.9 mm |
| Size / Dimension [z] | 0.14 " |
| Size / Dimension [z] | 3.5 mm |
| Supplier Device Package | 165-BGA (16x11.9) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output 1 [Max] | 8 V |
| Voltage - Output 1 [Min] | 0.8 V |
| Voltage - Output 2 [Max] | 8 V |
| Voltage - Output 2 [Min] | 0.8 V |
| Voltage - Output 3 [Max] | 8 V |
| Voltage - Output 3 [Min] | 0.8 V |
| Voltage - Output 4 [Max] | 8 V |
| Voltage - Output 4 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LTM8060 Series
The LTM8060 is quad 40VIN, 3A step-down Silent Switcher μModule®regulator. The Silent Switcher architecture minimizes EMI while delivering high efficiency at frequencies up to 3MHz. Included in the package are the controllers, power switches, inductors, and support components. Operating over a wide input voltage range, the LTM8060 supports output voltages from 0.8V to 8V, and a switching frequency range of 200kHz to 3MHz, each set by a single resistor. Only the bulk input and output filter capacitors, are needed to finish the design. The LTM8060 product video is available on website.The LTM8060 is packaged in a compact (11.9mm × 16mm × 3.32mm) over-molded Ball Grid Array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8060 is RoHS compliant.Configurable Output ArrayThe LTM8060 outputs can be paralleled in an array for up to 12A capability.APPLICATIONSAutomated Test EquipmentIndustrial SuppliesMedical Equipment
