Specification	PIC24FJ1024GA606-I/PT

A/D Channels	16 count
A/D Resolution (bits)	10 bit
Connectivity	LINbus, IrDA, PMP, USART, SPI, UART, I2C
Core Processor	PIC
Core Size (Bit Width)	16 Bit
Mounting Type	Surface Mount
Number of I/O	53
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	64-TQFP
Package Length	10 mm
Package Name	64-TQFP
Package Width	10 mm
Peripherals	Reset, PWM, Brown-out Detect, WDT, POR, DMA, HLVD
Program Memory Depth	341.5 K
Program Memory Size	1 MB
Program Memory Type	FLASH
Program Memory Width	24
RAM Size Depth	32 K
RAM Size Width	8 bit
Speed	32 MHz
Voltage - Supply (Vcc/Vdd) Maximum	3.6 V
Voltage - Supply (Vcc/Vdd) Minimum	2 V

PIC24FJ1024GA606 Series

Low Power MCU w/ 1MB Dual Flash, Live Update

Part	Oscillator Type	Core Processor	Speed	RAM Size Width	RAM Size Depth	Program Memory Type	Number of I/O	Program Memory Depth	Program Memory Size	Program Memory Width	Package / Case	Package Width	Package Name	Package Length	Peripherals	Connectivity	Operating Temperature (Max)	Operating Temperature (Min)	A/D Resolution (bits)	A/D Channels	Mounting Type	Core Size (Bit Width)	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Qualification	Converter Architecture	Grade

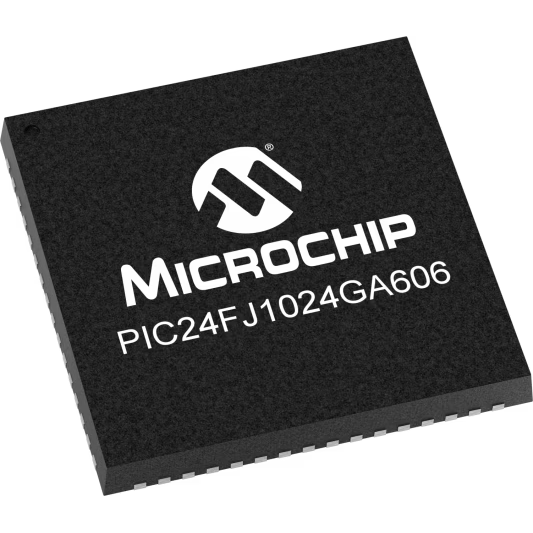

Microchip Technology PIC24FJ1024GA606T-I/MR	Internal	PIC	32 MHz	8 bit	32 K	FLASH	53	341.5 K	1 MB	24	64-VFQFN Exposed Pad	9 mm	64-QFN	9 mm	Brown-out Detect DMA HLVD POR PWM Reset WDT	I2C IrDA LINbus PMP SPI UART USART	85 °C	-40 °C	10 bit	16 count	Surface Mount	16 Bit	3.6 V	2 V
Microchip Technology PIC24FJ1024GA610-E/PT	Internal	PIC	32 MHz	8 bit	32 K	FLASH	85	341.5 K	1 MB	24	100-TQFP	12 mm	100-TQFP	12 mm	Brown-out Detect DMA HLVD POR PWM Reset WDT	I2C IrDA LINbus PMP SPI UART USART	125 °C	-40 °C	12 bit	24 count	Surface Mount	16 Bit	3.6 V	2 V	AEC-Q100	SAR	Automotive
Microchip Technology PIC24FJ1024GA606-E/PT	Internal	PIC	32 MHz	8 bit	32 K	FLASH	53	341.5 K	1 MB	24	64-TQFP	10 mm	64-TQFP	10 mm	Brown-out Detect DMA HLVD POR PWM Reset WDT	I2C IrDA LINbus PMP SPI UART USART	125 °C	-40 °C	12 bit	16 count	Surface Mount	16 Bit	3.6 V	2 V	AEC-Q100	SAR	Automotive
Microchip Technology PIC24FJ1024GA606-E/MR	Internal	PIC	32 MHz	8 bit	32 K	FLASH	53	341.5 K	1 MB	24	64-VFQFN Exposed Pad	9 mm	64-QFN	9 mm	Brown-out Detect DMA HLVD POR PWM Reset WDT	I2C IrDA LINbus PMP SPI UART USART	125 °C	-40 °C	12 bit	16 count	Surface Mount	16 Bit	3.6 V	2 V	AEC-Q100	SAR	Automotive
Microchip Technology PIC24FJ1024GA606-I/PT	Internal	PIC	32 MHz	8 bit	32 K	FLASH	53	341.5 K	1 MB	24	64-TQFP	10 mm	64-TQFP	10 mm	Brown-out Detect DMA HLVD POR PWM Reset WDT	I2C IrDA LINbus PMP SPI UART USART	85 °C	-40 °C	10 bit	16 count	Surface Mount	16 Bit	3.6 V	2 V
Microchip Technology PIC24FJ1024GA606-I/MR	Internal	PIC	32 MHz	8 bit	32 K	FLASH	53	341.5 K	1 MB	24	64-VFQFN Exposed Pad	9 mm	64-QFN	9 mm	Brown-out Detect DMA HLVD POR PWM Reset WDT	I2C IrDA LINbus PMP SPI UART USART	85 °C	-40 °C	10 bit	16 count	Surface Mount	16 Bit	3.6 V	2 V
Microchip Technology PIC24FJ1024GA606T-I/PT	Internal	PIC	32 MHz	8 bit	32 K	FLASH	53	341.5 K	1 MB	24	64-TQFP	10 mm	64-TQFP	10 mm	Brown-out Detect DMA HLVD POR PWM Reset WDT	I2C IrDA LINbus PMP SPI UART USART	85 °C	-40 °C	10 bit	16 count	Surface Mount	16 Bit	3.6 V	2 V
