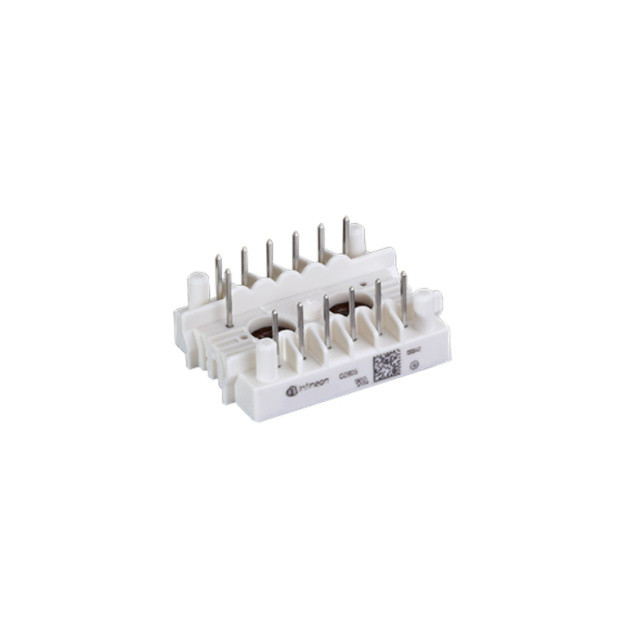

FS10R06VE3B2BOMA1

Obsolete

Infineon Technologies

IGBT MODULE 600V 16A 50W

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IGBT MODULE 600V 16A 50W

Technical Specifications

Parameters and characteristics for this part

Specification	FS10R06VE3B2BOMA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	16 A
Current - Collector Cutoff (Max) [Max]	1 mA
Input	Standard
Input Capacitance (Cies) @ Vce	550 pF
Mounting Type	Chassis Mount
NTC Thermistor	True
Package / Case	Module
Power - Max [Max]	50 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	Current - Collector (Ic) (Max) [Max]	Mounting Type	Current - Collector Cutoff (Max) [Max]	Vce(on) (Max) @ Vge, Ic	NTC Thermistor	Input Capacitance (Cies) @ Vce	Package / Case	Input	Supplier Device Package	Configuration	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]
Infineon Technologies FS10R06VE3BOMA1	16 A	Chassis Mount	1 mA	2 V		550 pF	Module	Standard	Module	Three Phase Inverter	50 W	600 V
Infineon Technologies FS10R06VE3B2BOMA1	16 A	Chassis Mount	1 mA	2 V		550 pF	Module	Standard	Module	Three Phase Inverter	50 W	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module Three Phase Inverter 600 V 16 A 50 W Chassis Mount Module

Technical documentation and resources

No documents available
