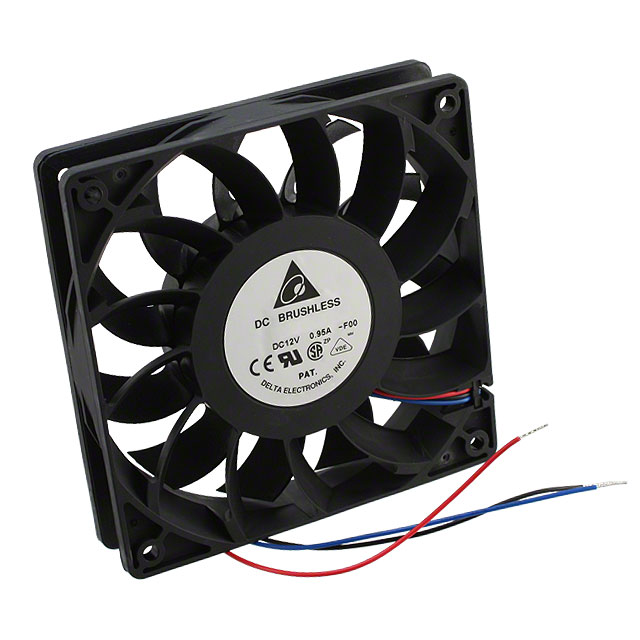

FFB1212VH-F00

Active

Delta Electronics

FAN AXIAL 120X25.4MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans VDE Cert Fans, Electric - Component UL Cert +2

FFB1212VH-F00

Active

Delta Electronics

FAN AXIAL 120X25.4MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans VDE Cert Fans, Electric - Component UL Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFB1212VH-F00

Air Flow	3.55 m³/min
Air Flow	126.9 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.79 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	51.9 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	9.48 W
RPM	3400 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	81.2 Pa
Static Pressure	0.326 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	205.02 g
Weight	0.452 lb
Width [y]	25.4 mm

FFB1212 Series

Part	Bearing Type	Width [y]	Termination	Material - Frame	Approval Agency	Lifetime @ Temp.	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Noise	Air Flow	Air Flow	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Material - Blade	Fan Type	Voltage Range [Max]	Voltage Range [Min]	RPM	Current Rating (Amps)	Power (Watts)	Weight	Weight	Features	Ingress Protection
Delta Electronics FFB1212VHE	Ball	38 mm	2 Wire Leads	Plastic	CE CSA UL VDE	70000 Hrs	12 VDC	120 mm	120 mm	53 dB	4.25 m³/min	151.9 CFM	110.8 Pa	0.445 in H2O	-10 °C	-10 °C	60 °C	60 °C	Plastic	Tubeaxial	13.2 VDC	7 V	3200 RPM	1 A	12 W	370.13 g	0.816 lb
Delta Electronics FFB1212EH	Ball	25.4 mm	2 Wire Leads	Plastic	CE CSA UL VDE	70000 Hrs	12 VDC	120 mm	120 mm	56.4 dB(A)	4.21 m³/min	150.3 CFM	121.9 Pa	0.489 in H2O	-10 °C	-10 °C	60 °C	60 °C	Plastic	Tubeaxial	13.2 VDC	7 V	4000 RPM	1.45 A	17.4 W	205.02 g	0.452 lb
Delta Electronics FFB1212SHE	Ball	38 mm	2 Wire Leads	Plastic	CE CSA UL VDE	70000 Hrs	12 VDC	120 mm	120 mm	56.5 dB	4.79 m³/min	170.9 CFM	140.2 Pa	0.563 in H2O	-10 °C	-10 °C	60 °C	60 °C	Plastic	Tubeaxial	13.2 VDC	7 V	3600 RPM	1.5 A	18 W	370.13 g	0.816 lb
Delta Electronics FFB1212VHE-F00	Ball	38 mm	3 Wire Leads	Plastic	CE CSA UL VDE	70000 Hrs	12 VDC	120 mm	120 mm	53 dB	4.25 m³/min	151.9 CFM	110.8 Pa	0.445 in H2O	-10 °C	-10 °C	60 °C	60 °C	Plastic	Tubeaxial	13.2 VDC	7 V	3200 RPM	1 A	12 W	370.13 g	0.816 lb	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics FFB1212EH-TZUJ	Ball	25.4 mm	2 Wire Leads	Plastic	CE CSA UL VDE	70000 Hrs	12 VDC	120 mm	120 mm	56.4 dB(A)	4.21 m³/min	150.3 CFM	121.9 Pa	0.489 in H2O	-10 °C	-10 °C	60 °C	60 °C	Plastic	Tubeaxial	13.2 VDC	7 V	4000 RPM	1.45 A	17.4 W	205.02 g	0.452 lb		IP55 - Dust Protected Water Resistant
Delta Electronics FFB1212EH-F00	Ball	25.4 mm	3 Wire Leads	Plastic	CE CSA UL VDE	70000 Hrs	12 VDC	120 mm	120 mm	56.4 dB(A)	4.21 m³/min	150.3 CFM	121.9 Pa	0.489 in H2O	-10 °C	-10 °C	60 °C	60 °C	Plastic	Tubeaxial	13.2 VDC	7 V	4000 RPM	1.45 A	17.4 W	205.02 g	0.452 lb	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics FFB1212VH-F00	Ball	25.4 mm	3 Wire Leads	Plastic	CE CSA UL VDE	70000 Hrs	12 VDC	120 mm	120 mm	51.9 dB(A)	3.55 m³/min	126.9 CFM	81.2 Pa	0.326 in H2O	-10 °C	-10 °C	60 °C	60 °C	Plastic	Tubeaxial	13.2 VDC	7 V	3400 RPM	0.79 A	9.48 W	205.02 g	0.452 lb	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics FFB1212HH-F00	Ball	25.4 mm	3 Wire Leads	Plastic	CE CSA UL VDE	70000 Hrs	12 VDC	120 mm	120 mm	49.7 dB(A)	3.21 m³/min	114.7 CFM	71.7 Pa	0.288 in H2O	-10 °C	-10 °C	60 °C	60 °C	Plastic	Tubeaxial	13.2 VDC	7 V	3100 RPM	650 mA	7.8 W	205.02 g	0.452 lb	Locked Rotor Protection Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.90
		10	$ 30.60
		25	$ 27.54
		54	$ 25.25
		108	$ 23.72
		270	$ 20.66

Description

General part information

FFB1212 Series

Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 126.9 CFM (3.55m³/min) 3 Wire Leads
