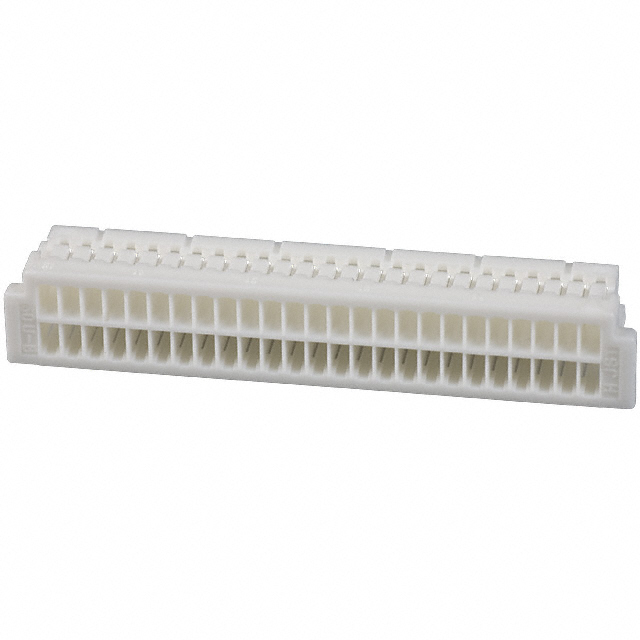

SHDR-50V-S-B

Active

JST Sales America Inc.

CONN RCPT HSG 50POS 1.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 50POS 1.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	SHDR-50V-S-B

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Pick and Place
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	50
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Row Spacing	0.039 in
Row Spacing	1 mm

Part	Color	Pitch [x]	Pitch [x]	Mounting Type	Insulation Material	Contact Termination	Row Spacing	Row Spacing	Connector Type	Note	Number of Rows	Features	Contact Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]
JST Sales America Inc. SHDR-50V-S-B	Natural	0.039 in	1 mm	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Crimp	0.039 in	1 mm	Receptacle	Contacts Not Included	2	Pick and Place	Female Socket	50	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
