ZXLB1600X10TA
ObsoleteDiodes Inc
SWITCHING REGULATOR, 0.5A, 500KHZ SWITCHING FREQ-MAX, PDSO10, MO-187, MSOP-10
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZXLB1600X10TA
ObsoleteDiodes Inc
SWITCHING REGULATOR, 0.5A, 500KHZ SWITCHING FREQ-MAX, PDSO10, MO-187, MSOP-10
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZXLB1600X10TA |
|---|---|
| Current - Output | 800 mA |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

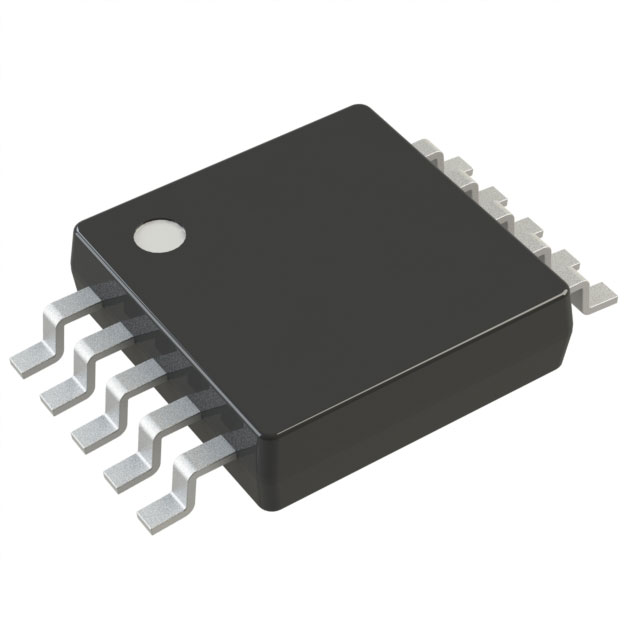

| Package / Case | 10-MSOP, 10-TFSOP |
| Package / Case [x] | 3 mm |
| Package / Case [x] | 0.118 in |
| Supplier Device Package | 10-MSOP |
| Synchronous Rectifier | False |
| Topology | Boost |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 1.6 V |
| Voltage - Output (Max) | 28 V |
| Voltage - Output (Min/Fixed) | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ZXLB1600 Series
Boost Switching Regulator IC Positive Adjustable ±1.6V 1 Output 800mA (Switch) 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
