130446
ActiveTE Connectivity AMP Connectors

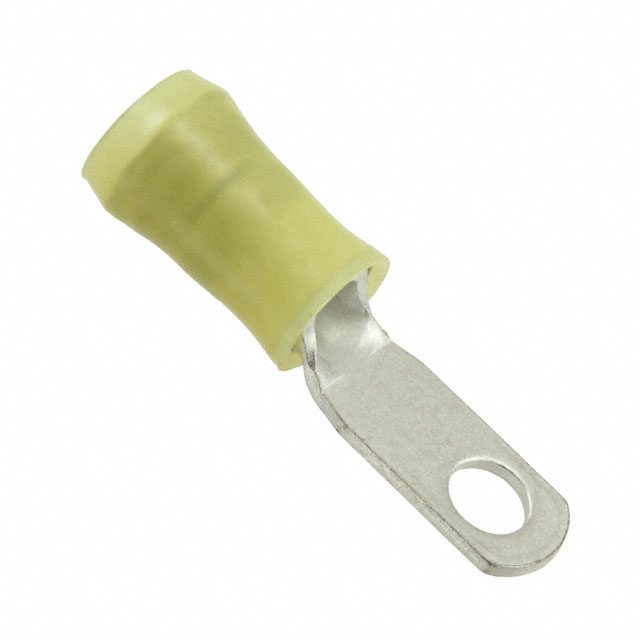

CONN RING FLAT 10-12AWG #8 CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
130446
ActiveTE Connectivity AMP Connectors
CONN RING FLAT 10-12AWG #8 CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 130446 | 1304 Series |
|---|---|---|
| Color | Yellow | Blue, Red, Yellow |
| Contact Finish | Tin | Tin |
| Contact Material | Copper | Copper |
| Diameter - Ring ID | - | 4.34 mm |
| Diameter - Ring ID | - | 0.171 in |
| Features | Serrated Termination | Serrated Termination |
| Insulation | Insulated | Insulated |
| Insulation Diameter | - | 4.9 mm |
| Insulation Diameter | - | 3 mm |
| Insulation Diameter [Max] | 0.25 " | 0.193 - 0.25 in |
| Insulation Diameter [Max] | 6.35 mm | 6.35 mm |
| Insulation Diameter [Min] | 3.81 mm | 3.81 mm |
| Insulation Diameter [Min] | 0.15 " | 0.118 - 0.15 in |
| Length - Overall [x] | 1.236 in | 0.807 - 1.236 in |
| Length - Overall [x] | 31.4 mm | 20.5 - 31.4 mm |
| Material - Insulation | Nylon, Polyamide (PA) | Nylon, Polyamide (PA), Poly-Vinyl Chloride (PVC) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud | 8 Stud |
| Stud/Tab Size | - | 4 Stud |
| Tab Thickness | - | 0.031 " |
| Tab Thickness | - | 0.79 mm |
| Terminal Style | - | Single Stud Hole |
| Terminal Type | Flat Sided | Rectangular Tongue, Flat Sided, Circular |
| Termination | Crimp | Crimp |
| Thickness | 0.99 mm | 0.79 - 0.99 mm |
| Thickness | 0.039 in | 0.031 - 0.039 in |
| Width - Outer Edges | - | 0.343 in |
| Width - Outer Edges | - | 8.71 mm |
| Width - Outer Edges [y] | 0.268 in | 0.217 - 0.268 " |
| Width - Outer Edges [y] | 6.8 mm | 5.5 - 6.8 mm |
| Wire Gauge [Max] | 12 AWG | 12 - 22 AWG |
| Wire Gauge [Min] | 10 AWG | 10 - 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.77 | |
| 10 | $ 0.71 | |||
| 25 | $ 0.69 | |||
| 50 | $ 0.68 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.59 | |||
1304 Series
CONN TERM RECT TONG 14-16 AWG #8
| Part | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Terminal Style | Termination | Stud/Tab Size | Contact Material | Insulation | Length - Overall [x] | Length - Overall [x] | Tab Thickness | Tab Thickness | Color | Terminal Type | Mounting Type | Width - Outer Edges [y] | Width - Outer Edges [y] | Contact Finish | Stud/Tab Size | Wire Gauge [Max] | Wire Gauge [Min] | Features | Material - Insulation | Thickness | Thickness | Width - Outer Edges [x] | Width - Outer Edges [x] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 130477 | 4.34 mm | 0.171 in | Single Stud Hole | Crimp | 8 Stud | Copper | Insulated | 20.65 mm | 0.813 in | 0.031 " | 0.79 mm | Blue | Rectangular Tongue | Free Hanging (In-Line) | 0.25 " | 6.35 mm | Tin | |||||||||||||||
TE Connectivity AMP Connectors 130452 | Crimp | Copper | Insulated | 20.5 mm | 0.807 in | Red | Flat Sided | Free Hanging (In-Line) | 0.217 in | 5.5 mm | Tin | 4 Stud | 22 AWG | 16 AWG | Serrated Termination | Nylon, Polyamide (PA) | 0.031 in | 0.79 mm | ||||||||||||||
TE Connectivity AMP Connectors 130476 | 4.34 mm | 0.171 in | Single Stud Hole | Crimp | 8 Stud | Copper | Insulated | 20.65 mm | 0.813 in | 0.031 " | 0.79 mm | Blue | Rectangular Tongue | Free Hanging (In-Line) | 0.25 " | 6.35 mm | Tin | |||||||||||||||
TE Connectivity AMP Connectors 130417 | Crimp | Copper | Insulated | 22.3 mm | 0.878 in | Blue | Circular | Free Hanging (In-Line) | Tin | 4 Stud | Serrated Termination | Poly-Vinyl Chloride (PVC) | 0.031 in | 0.79 mm | 0.343 in | 8.71 mm | 4.9 mm | 3 mm | 0.193 in | 0.118 in | ||||||||||||
TE Connectivity AMP Connectors 130446 | Crimp | 8 Stud | Copper | Insulated | 31.4 mm | 1.236 in | Yellow | Flat Sided | Free Hanging (In-Line) | 0.268 in | 6.8 mm | Tin | 12 AWG | 10 AWG | Serrated Termination | Nylon, Polyamide (PA) | 0.039 in | 0.99 mm | 0.25 " | 0.15 " | 3.81 mm | 6.35 mm | ||||||||||
TE Connectivity AMP Connectors 130451 | Crimp | Copper | Insulated | 20.5 mm | 0.807 in | Flat Sided | Free Hanging (In-Line) | 0.217 in | 5.5 mm | Tin | 22 AWG | 16 AWG | Serrated Termination | 0.031 in | 0.79 mm |
Description
General part information
1304 Series
Ring Terminal Connector 8 Stud Flat Sided 10-12 AWG Crimp
