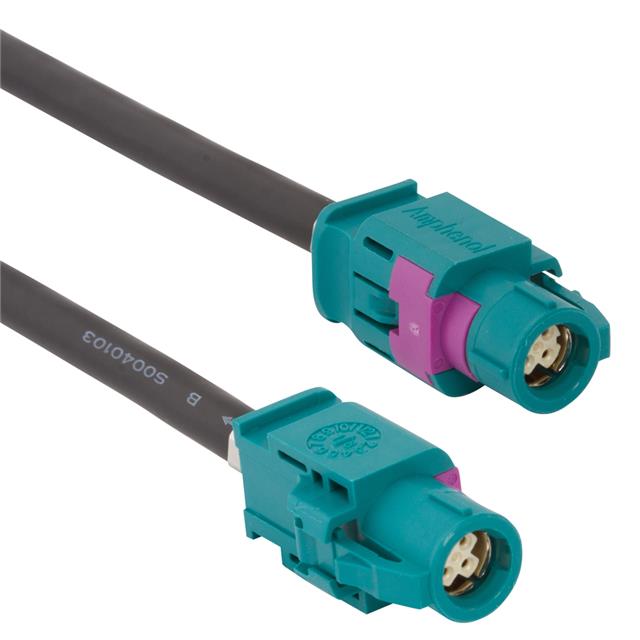

HSDSJZSJZ11-19

Active

AMPHENOL RF

CBL 4POS FMALE TO FMALE 6.56'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HSDSJZSJZ11-19

Active

AMPHENOL RF

CBL 4POS FMALE TO FMALE 6.56'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HSDSJZSJZ11-19	HSDSJZSJZ Series

1st Connector Gender	Female Sockets	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	4	4
1st Connector Number of Positions Loaded	All	All
1st Connector Orientation	Z	Z
1st Connector Type	Receptacle	Receptacle
2nd Connector Gender	Female Sockets	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Connector Number of Positions	4	4
2nd Connector Number of Positions Loaded	All	All
2nd Connector Orientation	Z	Z
2nd Connector Type	Receptacle	Receptacle
Assembly Configuration	Standard	Standard
Cable Type	Round	Round
Color	Black	Black
Length	-	1.5 - 7.62 m
Length	-	4.92 - 25 '
Length [x]	2 m	1 - 914.4 m
Length [x]	6.56 ft	1.64 - 6.56 ft
Shielding	Unshielded	Unshielded

HSDSJZSJZ Series

CBL 4POS FMALE TO FMALE 3.28'

Part	2nd Connector Orientation	1st Connector Type	2nd Connector Gender	1st Connector Number of Positions Loaded	1st Connector Mounting Type	2nd Connector Number of Positions Loaded	Length [x]	Length [x]	Assembly Configuration	1st Connector Orientation	1st Connector Gender	Cable Type	2nd Connector Number of Positions	1st Connector Number of Positions	Shielding	2nd Connector Type	2nd Connector Mounting Type	Color	Length	Length
AMPHENOL RF HSDSJZSJZ06-19	Z	Receptacle	Female Sockets	All	Free Hanging (In-Line)	All	1 m	3.28 ft	Standard	Z	Female Sockets	Round	4	4	Unshielded	Receptacle	Free Hanging (In-Line)	Black
AMPHENOL RF HSDSJZSJZ09-18	Z	Receptacle	Female Sockets	All	Free Hanging (In-Line)	All			Standard	Z	Female Sockets	Round	4	4	Unshielded	Receptacle	Free Hanging (In-Line)	Black	1.52 m	5 '
AMPHENOL RF HSDSJZSJZ11-18	Z	Receptacle	Female Sockets	All	Free Hanging (In-Line)	All	2 m	6.56 ft	Standard	Z	Female Sockets	Round	4	4	Unshielded	Receptacle	Free Hanging (In-Line)	Black
AMPHENOL RF HSDSJZSJZ11-19	Z	Receptacle	Female Sockets	All	Free Hanging (In-Line)	All	2 m	6.56 ft	Standard	Z	Female Sockets	Round	4	4	Unshielded	Receptacle	Free Hanging (In-Line)	Black
AMPHENOL RF HSDSJZSJZ18-18	Z	Receptacle	Female Sockets	All	Free Hanging (In-Line)	All			Standard	Z	Female Sockets	Round	4	4	Unshielded	Receptacle	Free Hanging (In-Line)	Black
AMPHENOL RF HSDSJZSJZ03-19	Z	Receptacle	Female Sockets	All	Free Hanging (In-Line)	All	609.6 mm	2 '	Standard	Z	Female Sockets	Round	4	4	Unshielded	Receptacle	Free Hanging (In-Line)	Black
AMPHENOL RF HSDSJZSJZ05-19	Z	Receptacle	Female Sockets	All	Free Hanging (In-Line)	All	914.4 mm	3 ft	Standard	Z	Female Sockets	Round	4	4	Unshielded	Receptacle	Free Hanging (In-Line)	Black
AMPHENOL RF HSDSJZSJZ09-19	Z	Receptacle	Female Sockets	All	Free Hanging (In-Line)	All			Standard	Z	Female Sockets	Round	4	4	Unshielded	Receptacle	Free Hanging (In-Line)	Black	1.52 m	5 '
AMPHENOL RF HSDSJZSJZ13-18	Z	Receptacle	Female Sockets	All	Free Hanging (In-Line)	All			Standard	Z	Female Sockets	Round	4	4	Unshielded	Receptacle	Free Hanging (In-Line)	Black	3.05 m	10 ft
AMPHENOL RF HSDSJZSJZ02-18	Z	Receptacle	Female Sockets	All	Free Hanging (In-Line)	All	500 mm	1.64 ft	Standard	Z	Female Sockets	Round	4	4	Unshielded	Receptacle	Free Hanging (In-Line)	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 49.33
		10	$ 45.27
		25	$ 43.53
		50	$ 42.08
		100	$ 39.76
		250	$ 38.59

Description

General part information

HSDSJZSJZ Series

Circular Cable Assembly Unshielded 6.56' (2.00m)
