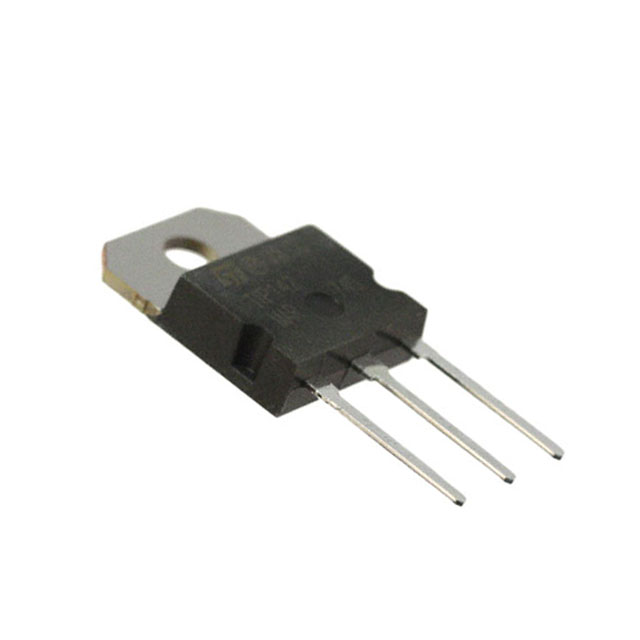

TIP33C

Active

STMicroelectronics

TRANS NPN 100V 10A TO247-3

Search across all available documentation for this part.

Active

STMicroelectronics

TRANS NPN 100V 10A TO247-3

Technical Specifications

Parameters and characteristics for this part

Specification	TIP33C

DC Current Gain (hFE) (Min) @ Ic, Vce	20
Frequency - Transition	3 MHz
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TO-247-3
Power - Max [Max]	80 W
Supplier Device Package	TO-247-3
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic [Max]	4 V
Voltage - Collector Emitter Breakdown (Max) [Max]	100 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

TRANS NPN 100V 10A TO247-3

Part	Vce Saturation (Max) @ Ib, Ic [Max]	Package / Case	Mounting Type	Operating Temperature	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce	Transistor Type	Frequency - Transition	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package
STMicroelectronics TIP33C	4 V	TO-247-3	Through Hole	150 °C	80 W	20	NPN	3 MHz	100 V	TO-247-3

General part information

Bipolar (BJT) Transistor NPN 100 V 10 A 3MHz 80 W Through Hole TO-247-3
