Technical Specifications
Parameters and characteristics for this part
| Specification | FN3271H-1000-99 |
|---|---|
| Applications | Power Drive Systems, Inverters |
| Approval Agency | CE, UKCA, ENEC, UR |
| Configuration | Single Stage |
| Current | 1 kA |
| Filter Type | Three Phase (Delta) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | DC |
| Mounting Type | Chassis Mount |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | Terminal Post |
| Voltage - Rated AC (Phase to Ground/Neutral) | 300 V |
| Voltage - Rated AC (Phase to Phase) | 520 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1530.69 | |
Description
General part information

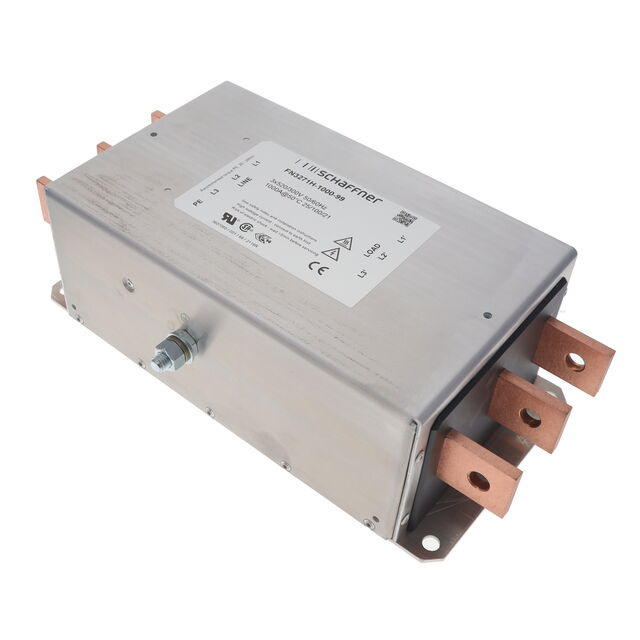

Schaffner FN3271 Series
1000 A 3-Phase Filter, Busbar Input, Busbar Output, Three Phase, 520 VAC, Chassis Mount, Schaffner FN3271
