D3431-5002-AR

Active

3M (TC)

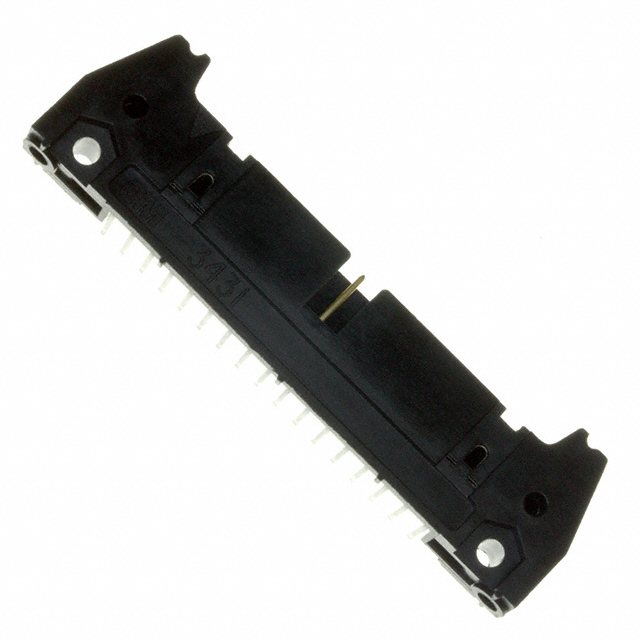

CONN HEADER R/A 34POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

D3431-5002-AR

Active

3M (TC)

CONN HEADER R/A 34POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D3431-5002-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.34 in
Insulation Height	8.64 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

D3431 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Type	Insulation Height	Insulation Height	Insulation Material	Contact Length - Post	Contact Length - Post	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Current Rating (Amps)	Connector Type	Contact Finish - Post	Contact Finish - Mating	Number of Rows	Contact Length - Mating	Contact Length - Mating [x]	Insulation Color	Overall Contact Length	Overall Contact Length	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Shape	Material Flammability Rating	Fastening Type	Mounting Type
3M (TC) D3431-6202-AR	105 ░C	-55 °C	0.1 in	2.54 mm	Brass	1 çm	39.4 çin	All	Male Pin	17.27 mm	0.68 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.84 mm	0.112 in	Board to Cable/Wire	2.54 mm	0.1 in	34	1.75 A	Header	Tin	Gold	2	6.1 mm	0.24 in	Black	0.652 in	16.56 mm	Solder	10 çin	0.25 çm	Shrouded - 4 Wall	Square	UL94 V-0	Latch Lock/Eject Hooks Short	Through Hole
3M (TC) D3431-6302-AR	105 ░C	-55 °C	0.1 in	2.54 mm	Brass	1 çm	39.4 çin	All	Male Pin	17.27 mm	0.68 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.84 mm	0.112 in	Board to Cable/Wire	2.54 mm	0.1 in	34	1.75 A	Header	Tin	Gold	2	6.1 mm	0.24 in	Black	0.652 in	16.56 mm	Solder	10 çin	0.25 çm	Shrouded - 4 Wall	Square	UL94 V-0	Latch Lock/Eject Hooks Long	Through Hole
3M (TC) D3431-5202-AR	105 ░C	-55 °C	0.1 in	2.54 mm	Brass	1 çm	39.4 çin	All	Male Pin	8.64 mm	0.34 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.84 mm	0.112 in	Board to Cable/Wire	2.54 mm	0.1 in	34	1.75 A	Header	Tin	Gold	2	6.1 mm	0.24 in	Black			Solder	10 çin	0.25 çm	Shrouded - 4 Wall	Square	UL94 V-0	Latch Lock/Eject Hooks Short	Through Hole Right Angle
3M (TC) D3431-5002-AR	105 ░C	-55 °C	0.1 in	2.54 mm	Brass	1 çm	39.4 çin	All	Male Pin	8.64 mm	0.34 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.84 mm	0.112 in	Board to Cable/Wire	2.54 mm	0.1 in	34	1.75 A	Header	Tin	Gold	2	6.1 mm	0.24 in	Black			Solder	10 çin	0.25 çm	Shrouded - 4 Wall	Square	UL94 V-0	Push-Pull	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.72
		10	$ 3.38
		200	$ 2.98
		600	$ 2.53
		1000	$ 2.16
		5000	$ 1.93

Description

General part information

D3431 Series

Connector Header Through Hole, Right Angle 34 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet
