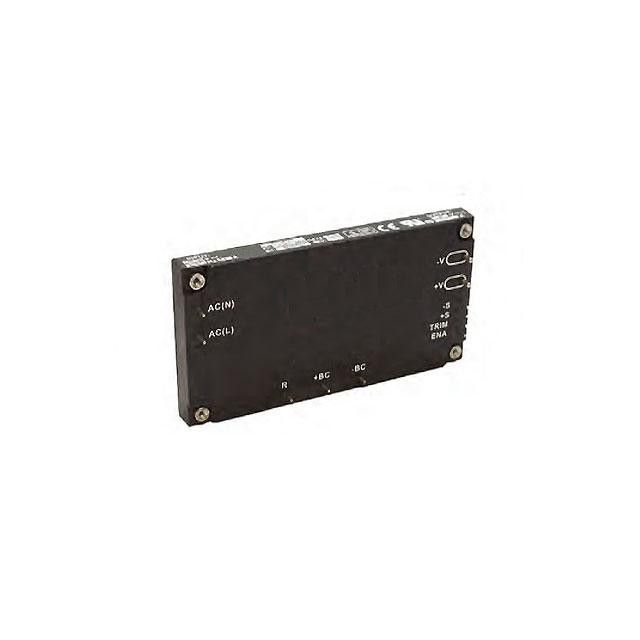

SMV-48-500

Active

Astrodyne TDI

AC/DC CONVERTER 48V 500W

Search across all available documentation for this part.

Active

Astrodyne TDI

AC/DC CONVERTER 48V 500W

Technical Specifications

Parameters and characteristics for this part

Specification	SMV-48-500

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output (Max) [Max]	10.5 A
Efficiency	90.4 %
Features	Baseplate, Universal Input, Adjustable Output, Remote Sense
Line Regulation	96 mV
Load Regulation	96 mV
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Full Brick
Power (Watts)	500 W
Size / Dimension [x]	4.6 "
Size / Dimension [x]	116.8 mm
Size / Dimension [y]	2.4 "
Size / Dimension [y]	61 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Standard Number	60950-1
Type	Enclosed
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Output 1	48 V
Weight	209 g
Weight	0.46 lb

AC/DC CONVERTER 48V 500W

Part	Type	Voltage - Output 1	Line Regulation	Number of Outputs	Package / Case	Mounting Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Current - Output (Max) [Max]	Load Regulation	Standard Number	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Weight	Weight	Power (Watts)	Applications
Astrodyne TDI SMV-48-500	Enclosed	48 V	96 mV	1	Full Brick	Through Hole	CE, cURus, TUV	100 °C	-40 °C	Adjustable Output, Baseplate, Remote Sense, Universal Input	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	10.5 A	96 mV	60950-1	90.4 %	85 VAC	265 VAC	209 g	0.46 lb	500 W	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 48V 10.5A 85 ~ 265 VAC Input
