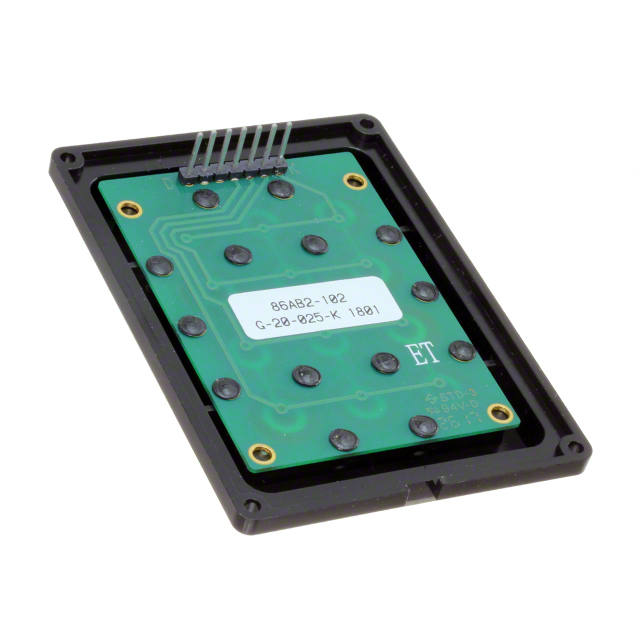

86AB2-102

Active

Grayhill Inc.

SWITCH KEYPAD 12KEY 0.01A 24V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH KEYPAD 12KEY 0.01A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH KEYPAD 12KEY 0.01A 24V

Part	Legend	Legend Type	Legend Color	Output Type	Operational Life	Number of Keys	Ingress Protection	Key Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Mounting Type	Contact Rating @ Voltage	Illumination	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Switch Type	Key Color
Grayhill Inc. 86AB2-102	Telephone Format	Fixed	Black	1.81 mOhm	3000000 Cycles	12	IP40	Polymer	-40 °C	80 C	Pin Header	Panel Mount, Front or Rear	0.01 A, 24 VDC	Non-Illuminated	4	3	Snap Dome	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keypad Switch 12 Polymer Keys Snap Dome Contacts Matrix Output Non-Illuminated 0.01A @ 24VDC
