Q-2H01P0001108i

Active

Amphenol Custom Cable

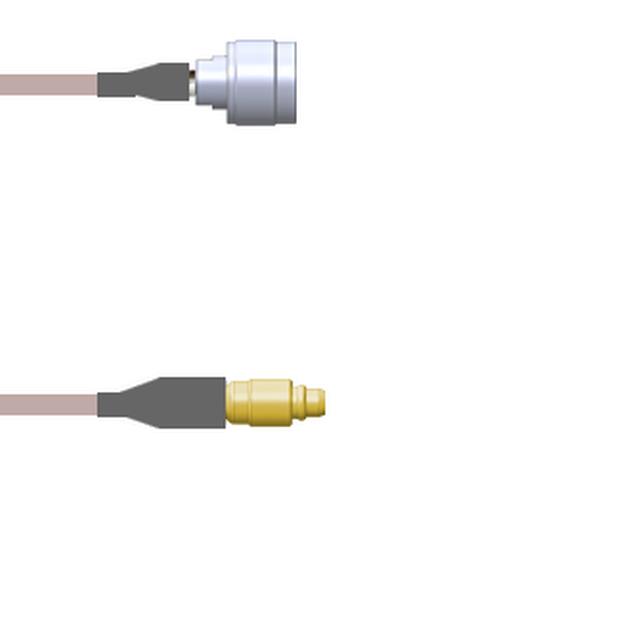

CBL ASSY MMCX-NTYPE PLUG-PLUG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2H01P0001108i

Active

Amphenol Custom Cable

CBL ASSY MMCX-NTYPE PLUG-PLUG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2H01P0001108i

1st Connector	MMCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	MMCX to N-Type

Q-2H01P0 Series

Part	1st Connector	Length	Length	Style	Features	Cable Type	1st Connector Mounting Type	2nd Connector	Overall Impedance	Frequency - Max [Max]	2nd Connector Mounting Type	Color	1st Contact Gender	2nd Contact Gender	Length [x]	Length [x]	Length	Length [x]
Amphenol Custom Cable Q-2H01P0001003i	MMCX Plug	3 in	76.2 mm	MMCX to N-Type	Shielded	RG-178	Free Hanging (In-Line)	N-Type Plug	50 Ohms	6000 MHz	Free Hanging (In-Line)	Copper	Male	Male
Amphenol Custom Cable Q-2H01P0001036i	MMCX Plug	36 in	91.44 cm	MMCX to N-Type	Shielded	RG-178	Free Hanging (In-Line)	N-Type Plug	50 Ohms	6000 MHz	Free Hanging (In-Line)	Copper	Male	Male
Amphenol Custom Cable Q-2H01P0001024i	MMCX Plug	24 "	609.6 mm	MMCX to N-Type	Shielded	RG-178	Free Hanging (In-Line)	N-Type Plug	50 Ohms	6000 MHz	Free Hanging (In-Line)	Copper	Male	Male
Amphenol Custom Cable Q-2H01P0001009i	MMCX Plug	9 "	228.6 mm	MMCX to N-Type	Shielded	RG-178	Free Hanging (In-Line)	N-Type Plug	50 Ohms	6000 MHz	Free Hanging (In-Line)	Copper	Male	Male
Amphenol Custom Cable Q-2H01P0001006i	MMCX Plug	6 in	152.4 mm	MMCX to N-Type	Shielded	RG-178	Free Hanging (In-Line)	N-Type Plug	50 Ohms	6000 MHz	Free Hanging (In-Line)	Copper	Male	Male
Amphenol Custom Cable Q-2H01P0001.25M	MMCX Plug			MMCX to N-Type	Shielded	RG-178	Free Hanging (In-Line)	N-Type Plug	50 Ohms	6000 MHz	Free Hanging (In-Line)	Copper	Male	Male	9.843 "	250 mm
Amphenol Custom Cable Q-2H01P0001108i	MMCX Plug	108 in	2.7 m	MMCX to N-Type	Shielded	RG-178	Free Hanging (In-Line)	N-Type Plug	50 Ohms	6000 MHz	Free Hanging (In-Line)	Copper	Male	Male			9 ft
Amphenol Custom Cable Q-2H01P0001012i	MMCX Plug	12 "	304.8 mm	MMCX to N-Type	Shielded	RG-178	Free Hanging (In-Line)	N-Type Plug	50 Ohms	6000 MHz	Free Hanging (In-Line)	Copper	Male	Male
Amphenol Custom Cable Q-2H01P0001060i	MMCX Plug	5 '	1.5 m	MMCX to N-Type	Shielded	RG-178	Free Hanging (In-Line)	N-Type Plug	50 Ohms	6000 MHz	Free Hanging (In-Line)	Copper	Male	Male			5 ft
Amphenol Custom Cable Q-2H01P0001018i	MMCX Plug			MMCX to N-Type	Shielded	RG-178	Free Hanging (In-Line)	N-Type Plug	50 Ohms	6000 MHz	Free Hanging (In-Line)	Copper	Male	Male		457.2 mm		457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 86.44
		25	$ 84.81
		50	$ 83.18
		100	$ 81.55
		250	$ 79.91

Description

General part information

Q-2H01P0 Series

Cable Assembly Coaxial MMCX to N-Type RG-178 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
