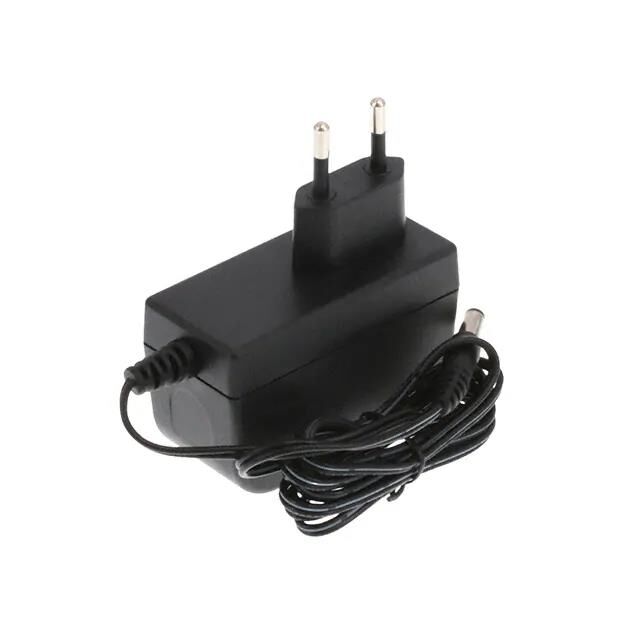

WR9MU1800LCP-F(R6B)

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 10V 18W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 10V 18W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9MU1800LCP-F(R6B)

Applications	ITE (Commercial)
Approval Agency	CE, LPS, EAC, UKRSepro, CB
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.8 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	KSC 8305
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	18 W
Region Utilized	Europe
Size / Dimension [x]	2.89 in
Size / Dimension [x]	73.5 mm
Size / Dimension [y]	35 mm
Size / Dimension [y]	1.38 "
Size / Dimension [z]	3.28 in
Size / Dimension [z]	83.4 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	10 V

Part	No Load Power Consumption [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Current - Output (Max) [Max]	Region Utilized	Polarization	Cord Length	Cord Length	Voltage - Output	Form	Power (Watts)	Applications	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Output Connector	Output Connector [diameter]	Output Connector [z]	Efficiency	Input Connector	Input Type	Output Connector [x]
GlobTek, Inc. WR9MU1800CCP-F(R6B)	75 mW	40 °C	0 °C	CB CE EAC LPS UKRSepro	1.8 A	Europe	Positive Center	1.5 m	59 in	10 V	Wall Mount (Class II)	18 W	ITE (Commercial)	60950-1	90 VAC	264 VAC	2.89 in	3.28 in	35 mm	1.38 "	73.5 mm	83.4 mm	Barrel Plug	2.1 mm 5.5 mm	11 mm	CoC Tier 2 Level VI	KSC 8305	Fixed Blade
GlobTek, Inc. WR9MU1800LCP-F(R6B)	75 mW	40 °C	0 °C	CB CE EAC LPS UKRSepro	1.8 A	Europe	Positive Center	1.5 m	59 in	10 V	Wall Mount (Class II)	18 W	ITE (Commercial)	60950-1	90 VAC	264 VAC	2.89 in	3.28 in	35 mm	1.38 "	73.5 mm	83.4 mm	Barrel Plug	2.5 mm 5.5 mm		CoC Tier 2 Level VI	KSC 8305	Fixed Blade	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10V 18 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
