MAXM15462EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAXM15462
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXM15462EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAXM15462
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM15462EVKIT# | MAXM15462 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Board Type | Fully Populated | Fully Populated |
| Control Features | - | Active High, Enable |
| Current - Output | 300 mA | 300 mA |
| Current - Output (Max) | - | 300 mA |
| Features | - | OCP, OTP, OTP, UVLO, OCP |
| Frequency - Switching | 500 kHz | 500 kHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 10-SMD Module |
| Regulator Topology | Buck | Buck |
| Size / Dimension | - | 0.06 " |
| Size / Dimension | - | 1.5 mm |
| Size / Dimension | - | 0.1 in |
| Size / Dimension | - | 0.12 in |
| Size / Dimension | - | 2.6 mm |
| Size / Dimension | - | 3 mm |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-eMGA |
| Supplier Device Package | - | 2.6 |
| Supplier Device Package | - | 3 |
| Type | - | Non-Isolated PoL Module |
| Utilized IC / Part | MAXM15462 | MAXM15462 |
| Voltage - Input (Max) | - | 42 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 42 V | 42 V |
| Voltage - Input [Min] | 4.5 V | 4.5 V |
| Voltage - Output | 3.3 V | 3.3 V |
| Voltage - Output 1 | - | 0.9 V |
| Voltage - Output 1 | - | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 35.71 | |
MAXM15462 Series
DC DC CONVERTER 0.9-5V
| Part | Voltage - Input (Min) [Min] | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Applications | Features | Type | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Mounting Type | Number of Outputs | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Control Features | Package / Case | Frequency - Switching | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Outputs and Type | Outputs and Type | Regulator Topology | Supplied Contents | Main Purpose | Utilized IC / Part | Current - Output | Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM15462AMB+T | 4.5 V | 10-eMGA | 2.6 | 3 | 125 °C | -40 °C | 300 mA | 42 V | ITE (Commercial) | OCP, OTP | Non-Isolated PoL Module | 0.9 V | 5 V | Surface Mount | 1 | 0.06 " | 1.5 mm | 0.1 in | 0.12 in | 2.6 mm | 3 mm | Active High, Enable | 10-SMD Module | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM15462EVKIT# | 500 kHz | 42 V | 4.5 V | 3.3 V | Non-Isolated | 1 | Buck | Board(s) | DC/DC, Step Down | MAXM15462 | 300 mA | Fully Populated | |||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXM15462AMB+ | 4.5 V | 10-eMGA | 2.6 | 3 | 125 °C | -40 °C | 300 mA | 42 V | ITE (Commercial) | OCP, OTP, UVLO | Non-Isolated PoL Module | 0.9 V | 5 V | Surface Mount | 1 | 0.06 " | 1.5 mm | 0.1 in | 0.12 in | 2.6 mm | 3 mm | Active High, Enable | 10-SMD Module |
Description
General part information
MAXM15462 Series

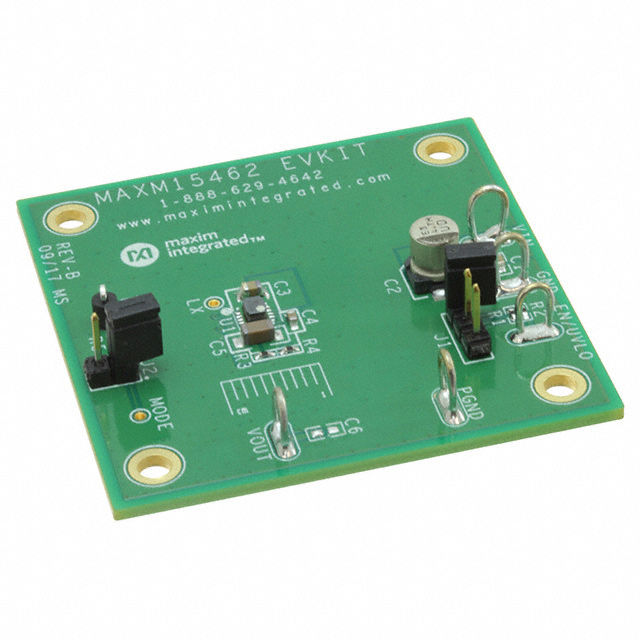

MAXM15462 Himalaya DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
