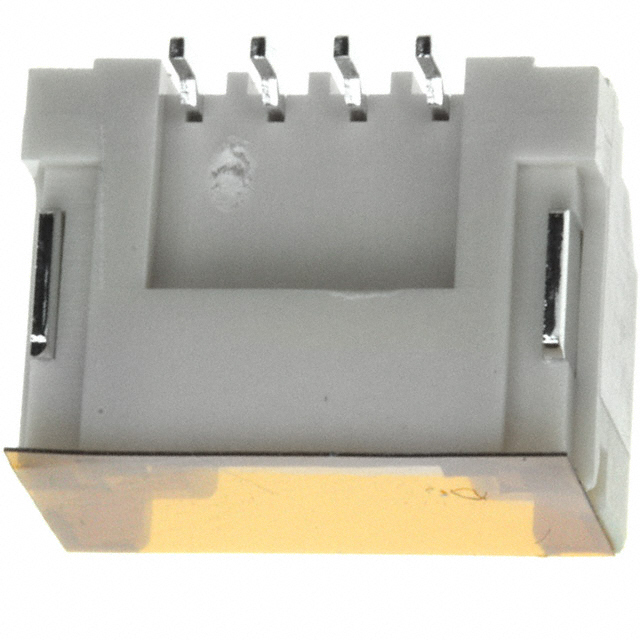

BM04B-ZESS-TBT

Active

JST Sales America Inc.

CONN HEADER SMD 4POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 4POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM04B-ZESS-TBT

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	2 A
Fastening Type	Locking Ramp
Features	Pick and Place, Solder Retention
Insulation Color	Natural
Insulation Height	0.295 in
Insulation Height	7.5 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	9.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

Part	Material Flammability Rating	Number of Positions Loaded	Contact Type	Number of Rows	Style	Shrouding	Voltage Rating	Fastening Type	Mounting Type	Current Rating (Amps)	Contact Shape	Features	Insulation Material	Number of Positions	Insulation Height	Insulation Height	Contact Material	Insulation Color	Connector Type	Termination	Contact Finish - Post	Mated Stacking Heights	Operating Temperature [Min]	Operating Temperature [Max]
JST Sales America Inc. BM04B-ZESS-TBT	UL94 V-0	All	Outer Shroud Contact	1	Board to Cable/Wire	Shrouded - 4 Wall	100 V	Locking Ramp	Surface Mount	2 A	Rectangular	Pick and Place Solder Retention	Nylon Polyamide (PA)	4	0.295 in	7.5 mm	Copper Alloy	Natural	Header	Solder	Tin	9.4 mm	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 4 position 0.059" (1.50mm)
