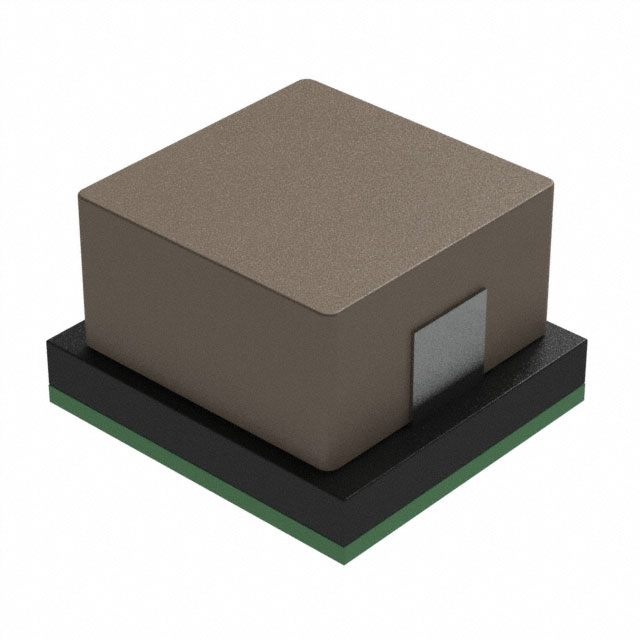

MSN24VD03-GR
ObsoleteDelta Electronics/Cyntec
DC DC CONVERTER 5.1-20V
Deep-Dive with AI
Search across all available documentation for this part.
MSN24VD03-GR
ObsoleteDelta Electronics/Cyntec
DC DC CONVERTER 5.1-20V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSN24VD03-GR |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 94 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 44-BLGA Module |
| Size / Dimension [x] | 9.4 mm |
| Size / Dimension [x] | 0.37 in |
| Size / Dimension [y] | 0.34 in |
| Size / Dimension [y] | 8.6 mm |
| Size / Dimension [z] | 6.3 mm |
| Size / Dimension [z] | 0.25 " |
| Supplier Device Package | 44-LGA (9.4x8.6) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 24 V |
| Voltage - Input (Min) [Min] | 5.1 V |
| Voltage - Output 1 [Max] | 20 V |
| Voltage - Output 1 [Min] | 5.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MSN24VD03 Series
Non-Isolated PoL Module DC DC Converter 1 Output 5.1 ~ 20V 3A 5.1V - 24V Input
