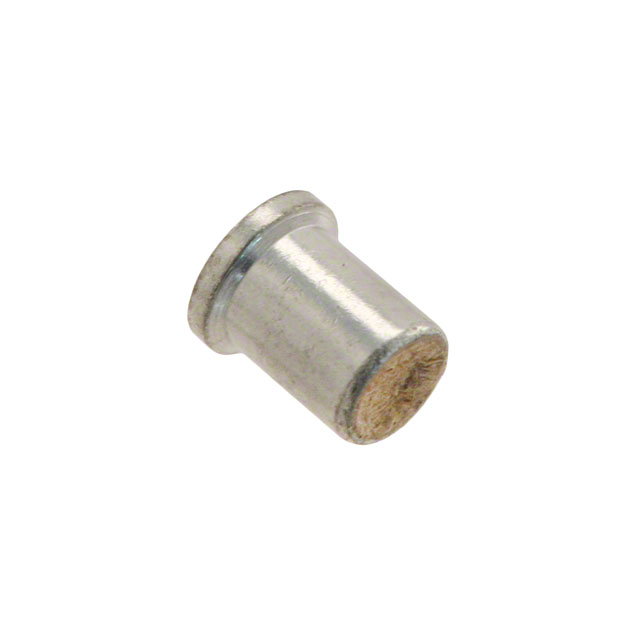

0332-0-67-80-18-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .037-.043 SOLDER

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .037-.043 SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	0332-0-67-80-18-27-10-0

Accepts Pin Diameter [Max]	0.043 in
Accepts Pin Diameter [Max]	1.09 mm
Accepts Pin Diameter [Min]	0.037 in
Accepts Pin Diameter [Min]	0.94 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Features	Knockout Bottom (Organic Fiber Plug®)
Flange Diameter [diameter]	2.29 mm
Flange Diameter [diameter]	0.09 in
Length - Overall	2.67 mm
Length - Overall	0.105 in
Mounting Hole Diameter [diameter]	2.01 mm
Mounting Hole Diameter [diameter]	0.079 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.37 mm
Pin Hole Diameter [diameter]	0.054 in
Socket Depth	2.67 mm
Socket Depth	0.105 in
Tail Type	No Tail
Termination	Solder

Part	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Length - Overall	Length - Overall	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Contact Finish	Socket Depth	Socket Depth	Termination	Features
Mill-Max Manufacturing Corp. 0332-0-15-15-18-27-10-0	2.29 mm	0.09 in	Beryllium Copper	-55 °C	125 °C	No Tail	2.67 mm	0.105 in	2.01 mm	0.079 in	0.76 Ám	30 Áin	1.37 mm	0.054 in	0.037 in	0.94 mm	0.043 in	1.09 mm	Gold	2.67 mm	0.105 in	Solder
Mill-Max Manufacturing Corp. 0332-0-43-80-18-27-10-0	2.29 mm	0.09 in	Beryllium Copper	-55 °C	125 °C	No Tail	2.67 mm	0.105 in	2.01 mm	0.079 in	0.76 Ám	30 Áin	1.37 mm	0.054 in	0.037 in	0.94 mm	0.043 in	1.09 mm	Gold	2.67 mm	0.105 in	Solder	Knockout Bottom (Organic Fiber Plug®)
Mill-Max Manufacturing Corp. 0332-0-67-80-18-27-10-0	2.29 mm	0.09 in	Beryllium Copper	-55 °C	125 °C	No Tail	2.67 mm	0.105 in	2.01 mm	0.079 in	0.76 Ám	30 Áin	1.37 mm	0.054 in	0.037 in	0.94 mm	0.043 in	1.09 mm	Gold	2.67 mm	0.105 in	Solder	Knockout Bottom (Organic Fiber Plug®)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.037" ~ 0.043" (0.94mm ~ 1.09mm) No Tail Solder
