LTV-817S-TA1-A-G

Active

Diodes Inc

OPTOISOLATOR 5KV 1CH TRANS 4-SMD

Search across all available documentation for this part.

Active

Diodes Inc

OPTOISOLATOR 5KV 1CH TRANS 4-SMD

Technical Specifications

Parameters and characteristics for this part

Specification	LTV-817S-TA1-A-G

Current - DC Forward (If) (Max)	50 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max) [Max]	600 %
Current Transfer Ratio (Min) [Min]	50 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-30 ░C
Output Type	1.81 mOhm

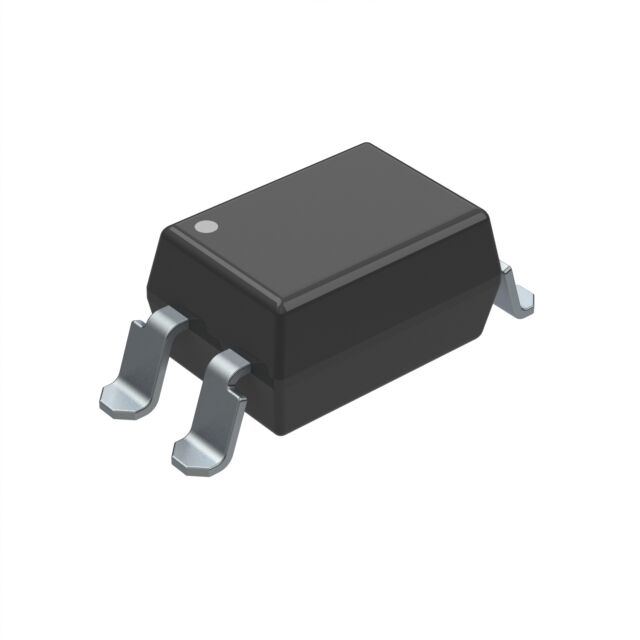

Package / Case	4-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	3 µs
Rise / Fall Time (Typ) [custom]	4 µs
Supplier Device Package	4-SMD
Vce Saturation (Max)	200 mV
Voltage - Output (Max) [Max]	35 V

Part	Output Type	Input Type	Voltage - Output (Max) [Max]	Vce Saturation (Max)	Number of Channels	Mounting Type	Current - DC Forward (If) (Max)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Current Transfer Ratio (Min) [Min]	Current Transfer Ratio (Max) [Max]	Current - Output / Channel	Package / Case
Diodes Inc LTV-817S	1.81 mOhm	DC	35 V	200 mV	1	Surface Mount	50 mA	3 µs	4 µs	-55 °C	110 °C	4-SMD	50 %	600 %	50 mA	4-SMD Gull Wing
Diodes Inc LTV-817S-TA1-A-G	1.81 mOhm	DC	35 V	200 mV	1	Surface Mount	50 mA	3 µs	4 µs	-30 ░C	110 °C	4-SMD	50 %	600 %	50 mA	4-SMD Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
