T4052227004-001
ActiveTE Connectivity AMP Connectors

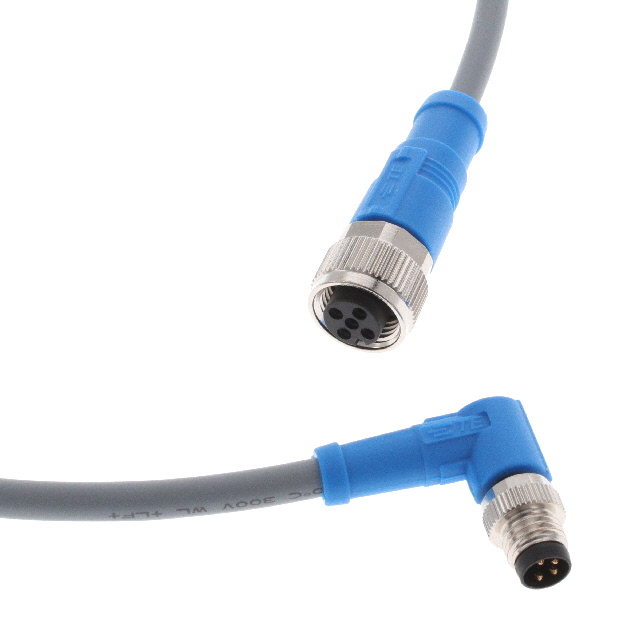

CBL 4POS RCPT RA TO PLUG 1.64'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4052227004-001
ActiveTE Connectivity AMP Connectors
CBL 4POS RCPT RA TO PLUG 1.64'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4052227004-001 | T40522 Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 | 3 - 4 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Orientation | A | A |
| 1st Connector Shell Size - Insert | M8 | M8 |
| 1st Connector Type | Receptacle, Right Angle | Receptacle, Right Angle |
| 2nd Connector Gender | Female Sockets | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 5 | 3 - 5 |
| 2nd Connector Number of Positions Loaded | 4 positions | 4 positions |
| 2nd Connector Number of Positions Loaded | - | All |
| 2nd Connector Shell Size - Insert | M12 | M12, M8 |
| 2nd Connector Type | Plug | Plug, Plug, Right Angle |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyurethane (PUR) | Polyurethane (PUR), Polyvinyl Chloride (PVC) |
| Cable Type | Round | Round |
| Color | Gray | Gray, Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Length [x] | 1.64 ft | 1.64 ft |
| Length [x] | 500 mm | 500 mm |
| Shielding | Unshielded | Unshielded |
| Usage | Industrial Environments | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.26 | |
| 10 | $ 14.94 | |||
| 25 | $ 14.55 | |||
| 50 | $ 13.83 | |||
| 100 | $ 12.48 | |||
| 250 | $ 12.40 | |||
| 500 | $ 10.81 | |||
T40522 Series
CBL 4POS RCPT RA TO PLUG 1.64'
| Part | 2nd Connector Gender | 2nd Connector Mounting Type | 2nd Connector Number of Positions Loaded | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | Cable Material | 2nd Connector Number of Positions | Shielding | 1st Connector Gender | 1st Connector Type | 1st Connector Shell Size - Insert | 1st Connector Mounting Type | Cable Type | Assembly Configuration | 2nd Connector Type | 2nd Connector Shell Size - Insert | Color | Usage | Ingress Protection | Length [x] | Length [x] | 1st Connector Orientation | 2nd Connector Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4052227004-001 | Female Sockets | Free Hanging (In-Line) | 4 positions | 4 | All | Polyurethane (PUR) | 5 | Unshielded | Male Pins | Receptacle, Right Angle | M8 | Free Hanging (In-Line) | Round | Standard | Plug | M12 | Gray | Industrial Environments | IP67 - Dust Tight, Waterproof | 1.64 ft | 500 mm | A | |
TE Connectivity AMP Connectors T4052224003-001 | Female Sockets | Free Hanging (In-Line) | 3 | All | Polyurethane (PUR) | 3 | Unshielded | Male Pins | Receptacle, Right Angle | M8 | Free Hanging (In-Line) | Round | Standard | Plug, Right Angle | M8 | Gray | Industrial Environments | IP67 - Dust Tight, Waterproof | 1.64 ft | 500 mm | A | All | |
TE Connectivity AMP Connectors T4052217004-001 | Female Sockets | Free Hanging (In-Line) | 4 positions | 4 | All | Polyvinyl Chloride (PVC) | 5 | Unshielded | Male Pins | Receptacle, Right Angle | M8 | Free Hanging (In-Line) | Round | Standard | Plug | M12 | Black | Industrial Environments | IP67 - Dust Tight, Waterproof | 1.64 ft | 500 mm | A |
Description
General part information
T40522 Series
Circular Cable Assembly Unshielded 1.64' (500.00mm)
