FS300R12KE3BOSA1
NRNDInfineon Technologies
THE FS300R12KE3 IS A SIXPACK IGBT3 - E3 MODULE IN A ECONOPACK™ + B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 300 A.
Deep-Dive with AI
Search across all available documentation for this part.
FS300R12KE3BOSA1
NRNDInfineon Technologies
THE FS300R12KE3 IS A SIXPACK IGBT3 - E3 MODULE IN A ECONOPACK™ + B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 300 A.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FS300R12KE3BOSA1 |
|---|---|
| Configuration | Three Phase Inverter |
| Current - Collector (Ic) (Max) [Max] | 500 A |
| Current - Collector Cutoff (Max) [Max] | 5 mA |
| IGBT Type | Trench Field Stop |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 21 nF |
| Mounting Type | Chassis Mount |
| NTC Thermistor | True |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Max [Max] | 1450 W |
| Supplier Device Package | Module |
| Vce(on) (Max) @ Vge, Ic | 2.15 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 1200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 516.71 | |
| 12 | $ 497.29 | |||
Description
General part information
FS300R12 Series

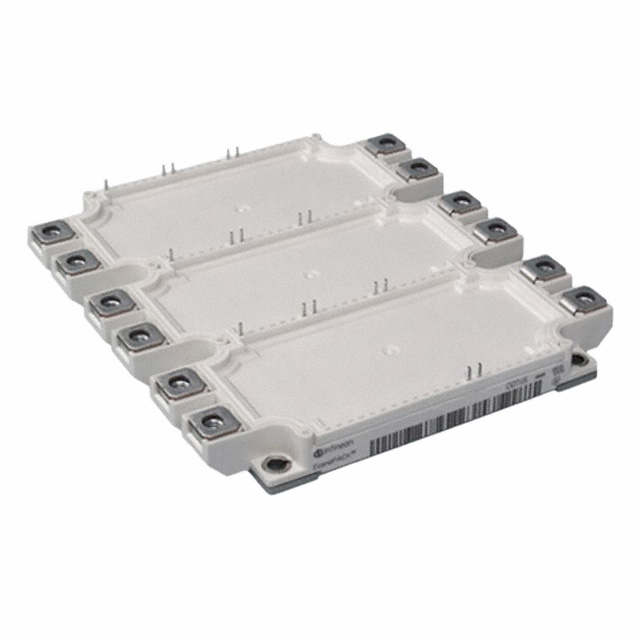

EconoPACK™+ B-series 1200 V, 300 A sixpackIGBT modulewith TRENCHSTOP™ IGBT3 and emitter controlled HE diode. Please also find our EconoPACK+ D-series for new design:FS300R12OE4
