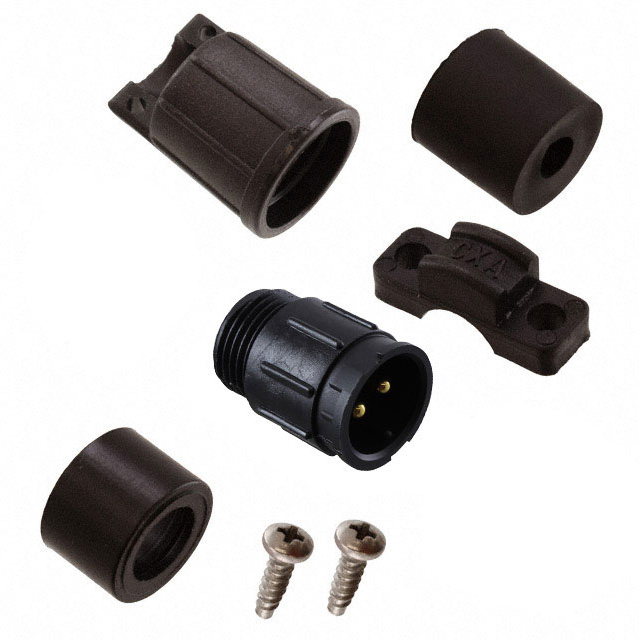

5182-2PG-530
ActiveConxall/Switchcraft
CONN RCPT MALE 2P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5182-2PG-530
ActiveConxall/Switchcraft
CONN RCPT MALE 2P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5182-2PG-530 | 5182-2PG Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 5.84 mm |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.2 in |
| Cable Opening | - | 5.08 mm |
| Cable Opening [Max] [diameter] | 0.32 in | 0.23 - 0.32 in |
| Cable Opening [Max] [diameter] | 8.13 mm | 8.13 mm |
| Cable Opening [Min] [diameter] | 7.62 mm | 5.33 - 7.62 mm |
| Cable Opening [Min] [diameter] | 0.3 in | 0.21 - 0.3 in |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Backshell, Cable Clamp |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 2 | 2 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
5182-2PG Series
CONN RCPT MALE 2P GOLD SLDR CUP
| Part | Fastening Type | Primary Material | Shielding | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Connector Type | Features | Orientation | Contact Finish - Mating | Color | Operating Temperature [Min] | Operating Temperature [Max] | Backshell Material, Plating | Mounting Type | Contact Material | Voltage Rating | Number of Positions | Ingress Protection | Cable Opening [Max] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 5182-2PG-330 | Bayonet Lock | Plastic | Unshielded | 7.62 mm | 0.32 in | 8.13 mm | 0.3 in | Male Pins, Receptacle | Backshell | Keyed | Gold | Black | -40 °C | 115 °C | Nylon, Polyamide (PA) | Free Hanging (In-Line) | Brass | 600 V | 2 | Weathertight | |||||
Conxall/Switchcraft 5182-2PG-3DC | Bayonet Lock | Plastic | Unshielded | Male Pins, Receptacle | Backshell | Keyed | Gold | Black | -40 °C | 115 °C | Nylon, Polyamide (PA) | Free Hanging (In-Line) | Brass | 600 V | 2 | Weathertight | |||||||||
Conxall/Switchcraft 5182-2PG-530 | Bayonet Lock | Plastic | Unshielded | 7.62 mm | 0.32 in | 8.13 mm | 0.3 in | Male Pins, Receptacle | Backshell, Cable Clamp | Keyed | Gold | Black | -40 °C | 115 °C | Nylon, Polyamide (PA) | Free Hanging (In-Line) | Brass | 600 V | 2 | Weathertight | |||||
Conxall/Switchcraft 5182-2PG-321 | Bayonet Lock | Plastic | Unshielded | 5.33 mm | 0.23 in | 0.21 in | Male Pins, Receptacle | Backshell | Keyed | Gold | Black | -40 °C | 115 °C | Nylon, Polyamide (PA) | Free Hanging (In-Line) | Brass | 600 V | 2 | Weathertight | 5.84 mm | |||||
Conxall/Switchcraft 5182-2PG-318 | Bayonet Lock | Plastic | Unshielded | Male Pins, Receptacle | Backshell | Keyed | Gold | Black | -40 °C | 115 °C | Nylon, Polyamide (PA) | Free Hanging (In-Line) | Brass | 600 V | 2 | Weathertight | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.13 | |
| 10 | $ 7.32 | |||
| 25 | $ 6.89 | |||
| 50 | $ 6.72 | |||
| 100 | $ 6.54 | |||
| 300 | $ 6.22 | |||
Description
General part information
5182-2PG Series
2 Position Circular Connector Receptacle, Male Pins Solder Cup
