5182-2PG-3DC

Active

Conxall/Switchcraft

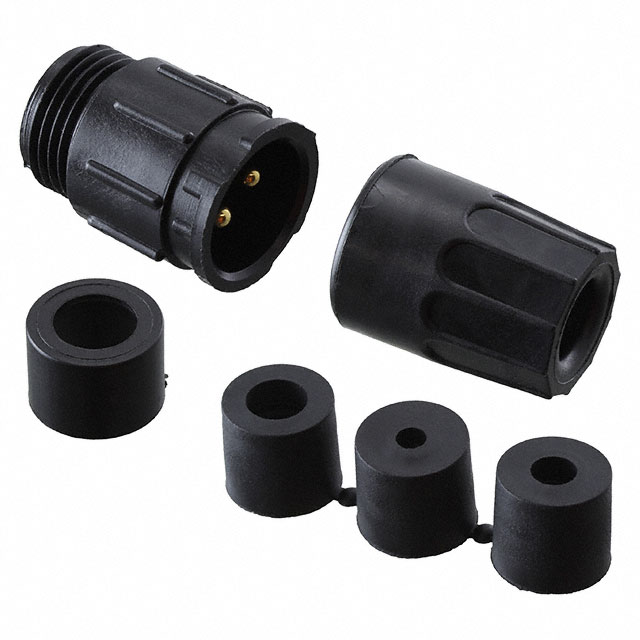

CONN RCPT MALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCable Assemblies/Connector Catalog Datasheet

5182-2PG-3DC

Active

Conxall/Switchcraft

CONN RCPT MALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsCable Assemblies/Connector Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.84
		10	$ 10.50
		25	$ 10.09
		50	$ 9.69
		100	$ 9.15
		300	$ 8.34
		500	$ 7.81
		1000	$ 7.16

Description

General part information

5182-2PG Series

2 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Cable Assemblies/Connector Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5182-2PG-3DC	5182-2PG Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	5.33 - 7.62 mm
Cable Opening	-	0.23 - 0.32 in
Cable Opening	-	8.13 mm
Cable Opening	-	0.21 - 0.3 in
Cable Opening	-	5.84 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

5182-2PG Series

CONN RCPT MALE 2P GOLD SLDR CUP

Part	Fastening Type	Primary Material	Shielding	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Connector Type	Features	Orientation	Contact Finish - Mating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Mounting Type	Contact Material	Voltage Rating	Number of Positions	Ingress Protection	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 5182-2PG-330	Bayonet Lock	Plastic	Unshielded	7.62 mm	0.32 in	8.13 mm	0.3 in	Male Pins, Receptacle	Backshell	Keyed	Gold	Black	-40 °C	115 °C	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Brass	600 V	2	Weathertight
Conxall/Switchcraft 5182-2PG-3DC	Bayonet Lock	Plastic	Unshielded					Male Pins, Receptacle	Backshell	Keyed	Gold	Black	-40 °C	115 °C	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Brass	600 V	2	Weathertight
Conxall/Switchcraft 5182-2PG-530	Bayonet Lock	Plastic	Unshielded	7.62 mm	0.32 in	8.13 mm	0.3 in	Male Pins, Receptacle	Backshell, Cable Clamp	Keyed	Gold	Black	-40 °C	115 °C	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Brass	600 V	2	Weathertight
Conxall/Switchcraft 5182-2PG-321	Bayonet Lock	Plastic	Unshielded	5.33 mm	0.23 in		0.21 in	Male Pins, Receptacle	Backshell	Keyed	Gold	Black	-40 °C	115 °C	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Brass	600 V	2	Weathertight	5.84 mm
Conxall/Switchcraft 5182-2PG-318	Bayonet Lock	Plastic	Unshielded					Male Pins, Receptacle	Backshell	Keyed	Gold	Black	-40 °C	115 °C	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Brass	600 V	2	Weathertight		4.57 mm	0.18 in	0.2 in	5.08 mm
