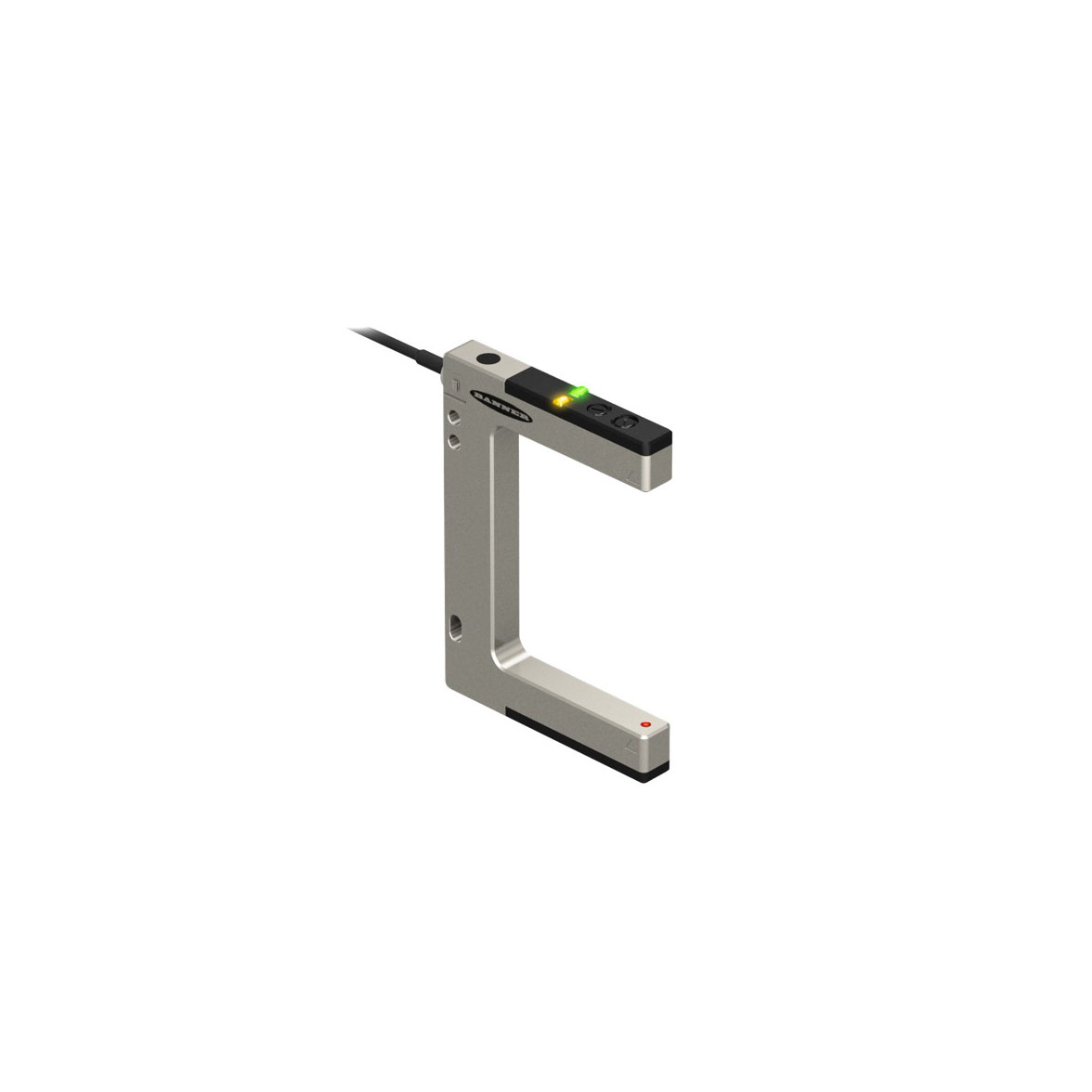

SLM80B6 W/30

Active

BANNER ENGINEERING

SLM SERIES: RUGGED NICKEL PLATED

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SLM SERIES: RUGGED NICKEL PLATED

Technical Specifications

Parameters and characteristics for this part

Specification	SLM80B6 W/30

Cable Length	354.33 in
Cable Length	9 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IEC IP67
Light Source	LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Configuration	NPN/PNP, Dark-ON/Light-ON, Selectable
Response Time	500 µs
Sensing Distance	80 mm
Sensing Distance	3.15 in
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Light Source	Ingress Protection	Cable Length	Cable Length	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time	Sensing Distance	Sensing Distance	Output Configuration	Connection Method	Operating Temperature [Min]	Operating Temperature [Max]
BANNER ENGINEERING SLM80B6 W/30	LED	NEMA 6P IEC IP67	354.33 in	9 m	30 VDC	10 VDC	500 µs	80 mm	3.15 in	Dark-ON/Light-ON NPN/PNP Selectable	Cable	-20 C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 231.00

General part information

Optical Sensor 3.150" (80mm) NPN/PNP - Dark-ON/Light-ON - Selectable
