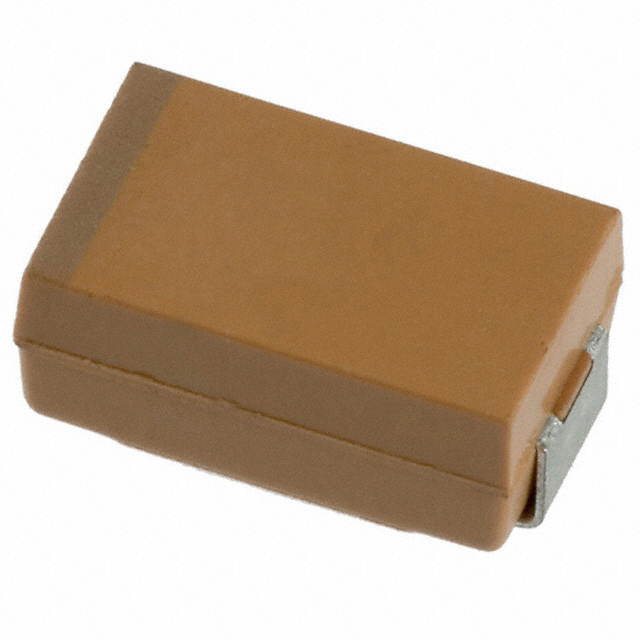

NOJY227M006RWJ

Active

Kyocera AVX

CAP NIOB OXI 220UF 20% 6.3V 2917

Search across all available documentation for this part.

Active

Kyocera AVX

CAP NIOB OXI 220UF 20% 6.3V 2917

Technical Specifications

Parameters and characteristics for this part

Specification	NOJY227M006RWJ

Capacitance	220 µF
Current - Leakage	26.4 µA
Dissipation Factor	10 %
ESR (Equivalent Series Resistance)	400 mOhms
Height - Seated (Max) [Max] [z]	2 mm
Height - Seated (Max) [Max] [z]	0.079 in
Manufacturer Size Code	Y
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Supplier Device Package	2917 (7343 Metric)
Tolerance	20 %
Voltage - Rated	6.3 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Dissipation Factor	Mounting Type	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Package / Case	Package / Case	Manufacturer Size Code	Capacitance	Current - Leakage	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
Kyocera AVX NOJY227M004RWJ	105 ░C	-55 °C	2917 (7343 Metric)	10 %	Surface Mount	20 %	2 mm	0.079 in	400 mOhms	7343 Metric	2917	Y	220 µF	17.6 µA	4 V	4.3 mm	0.287 "	7.3 mm	0.169 "
Kyocera AVX NOJY227M006RWJ	105 ░C	-55 °C	2917 (7343 Metric)	10 %	Surface Mount	20 %	2 mm	0.079 in	400 mOhms	7343 Metric	2917	Y	220 µF	26.4 µA	6.3 V	4.3 mm	0.287 "	7.3 mm	0.169 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

220 µF Niobium Oxide Capacitor 6.3 V 2917 (7343 Metric) 400 mOhms
