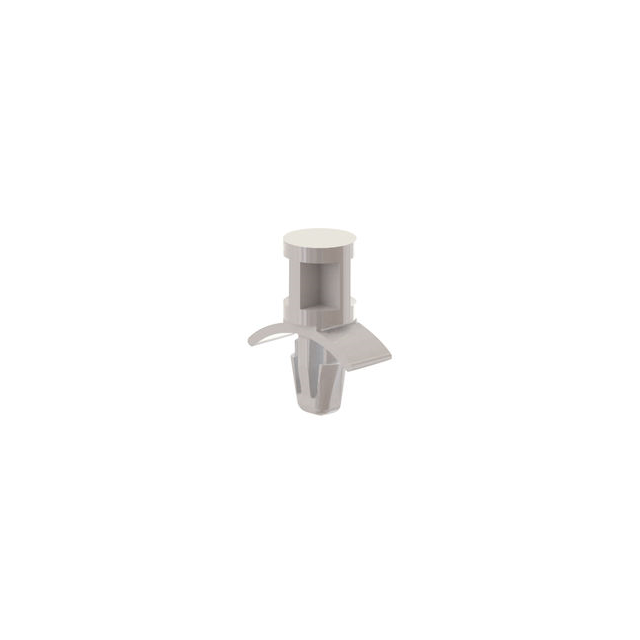

27PS00500
ActiveEssentra Access Solutions
PUSH SPACER, .500 SPACER, .187 H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
27PS00500
ActiveEssentra Access Solutions
PUSH SPACER, .500 SPACER, .187 H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 27PS00500 |
|---|---|
| Between Board Height | 0.5 in |
| Between Board Height | 12.7 mm |
| Holding Type | Snap Lock |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.187 in |
| Mounting Hole Diameter [diameter] | 4.75 mm |
| Mounting Hole Diameter [diameter] | 3 in |
| Mounting Panel Thickness [Max] | 0.093 in |
| Mounting Panel Thickness [Max] | 2.36 mm |
| Mounting Panel Thickness [Min] | 0.03 in |
| Mounting Panel Thickness [Min] | 0.76 mm |
| Mounting Type | Resting Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.49 | |
| 5 | $ 0.42 | |||
| 10 | $ 0.35 | |||
| 25 | $ 0.33 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.24 | |||
Description
General part information
27PS Series
Board Support Snap Lock / Resting Mount Nylon 0.500" (12.70mm)
